While we have covered the review of ZTE Nubia Z5 smartphone is now we have a teardown picture of the Nubia Z5, especially to expose the inside part of the ZTE flagship smartphone.

This phone is combine from the good specification, good design and great software since packs with the ability to controlling by gesture and swipe the screen. ZTE Nubia Z5 has 1080p screen display and powered by quad-core chipset, and offers with the higher price $555 USD. While the Oppo Find 5 only offers with $482 USD price tag.

The Nubia Z5 has 7.6mm body thickness, this process should also belong to the leading level in the industry.

s_37eca78b32cc4db993ef64bac1809690

Disassemble first step is to open the back cover to the back cover of nubia Z5 easily forced open the tool can be used cardboard. Order to further the use of space, the antenna is installed directly on the rear cover.

s_c6300a55530047eb867f6927c362bf9e

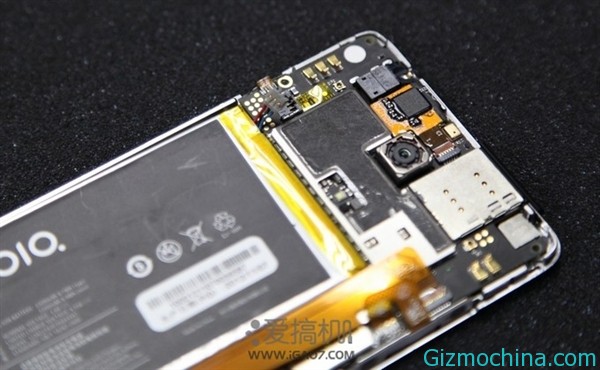

The internal interface similar OPPO Finder said like this phone mostly white, pry open the battery pins when we must be careful.

s_e6a6f5bc077f46ba947e90e36b0b61b6
The battery does not glue the bottom of adhesions, so replace it should also be relatively easy.

s_fee1315051b14e478f9da2376e46c5a7

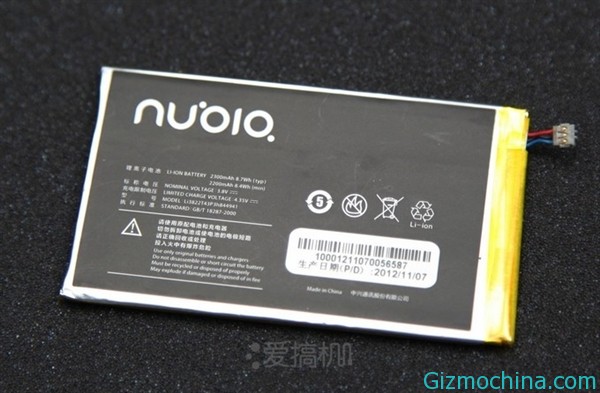

Battery capacity of 2300mAh

s_d373cdaf03ca4beeb2e9fd1298e0930e

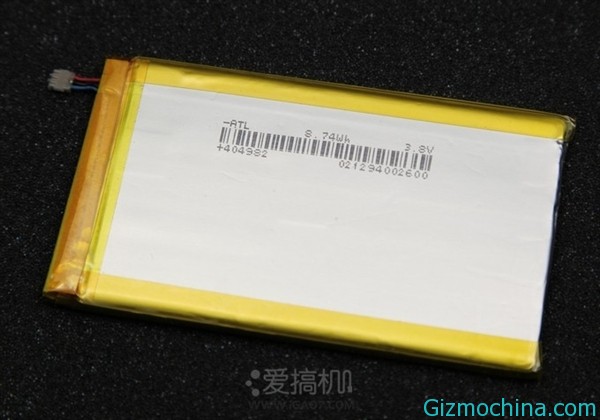

Specifications for 8.74Wh, 3.8V

s_a8cbfb1d56d64b20b703fa29973704fb

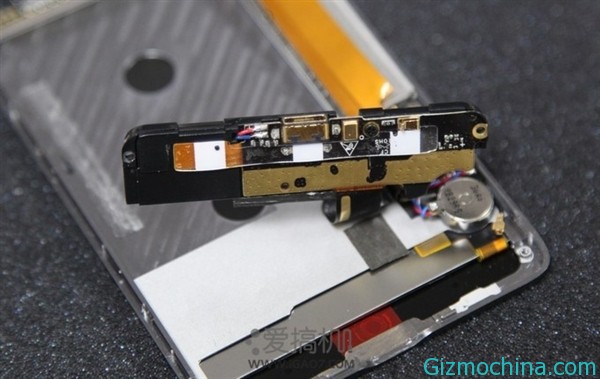

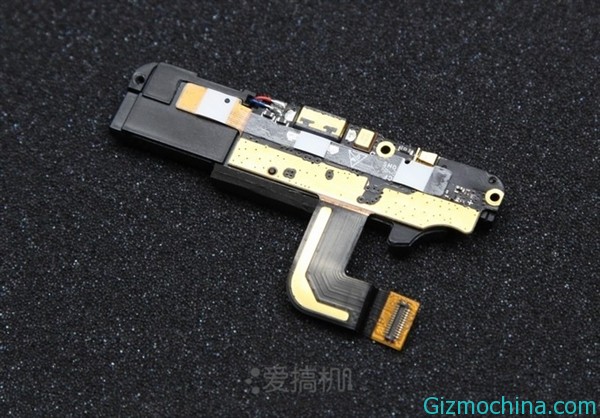

Then unscrew the screws to remove the bottom of the circuit board, speaker, microphone, and USB interface are located in this part of the Note must use a special screwdriver.

s_fe851aa4014c4fbdab1afec1dbabe8bb

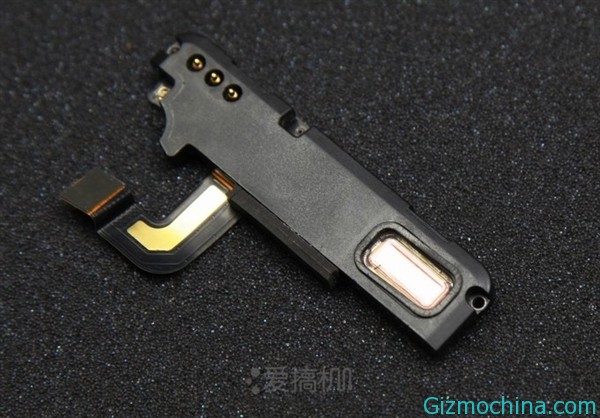

This is the speaker

s_803568df57cf498d9991dddd9028dad2
Three red backlit touch buttons here

s_4cbebb77bb1d426c9d02c8b5ec3d4f96
Micro USB interface exposed Mami

s_0d70895dab74440db6b24ed614f5fcff

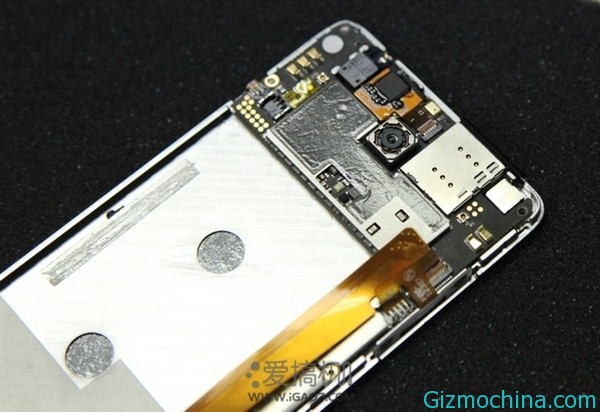

Ready to dismantle the top of the circuit board, CPU, memory, flash memory chips are all located in this part of the

s_bb89e1eeeb254a04b9f57ea369fce1aa

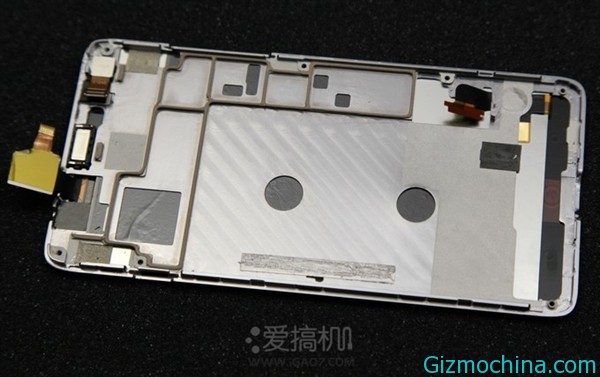

Pry open the cable circuit board isolated metal frame, and then down demolition is the screen, no hot air gun, do not move here.

s_79f3d8b34cd74da0afb6715170529bc5

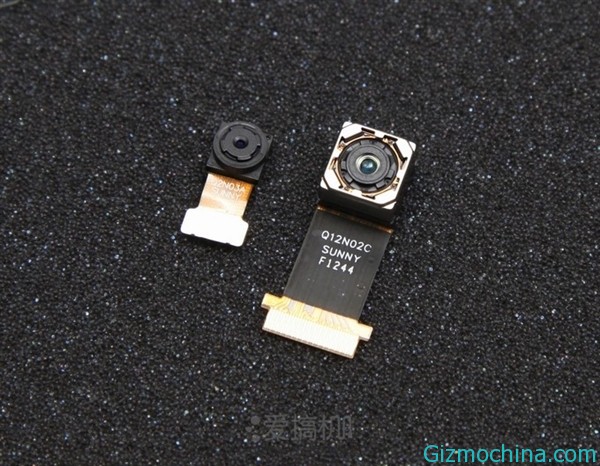

The left is a 2-megapixel front camera, and the right side of the 13 million pixel back-illuminated main camera, from ShunYu.

s_00fda2e4220e410b830ef4ed252164a3

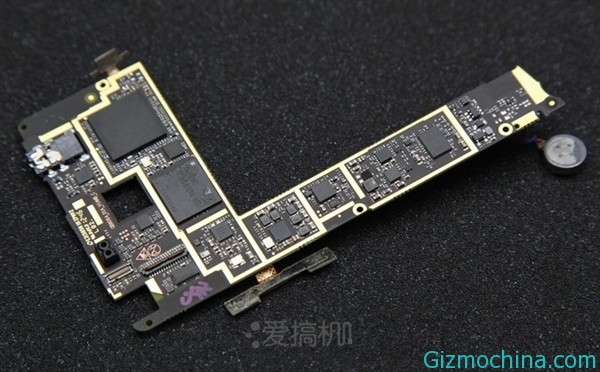

The Board is look like this

s_f9b89d664a134be2a4704aa90cc91643

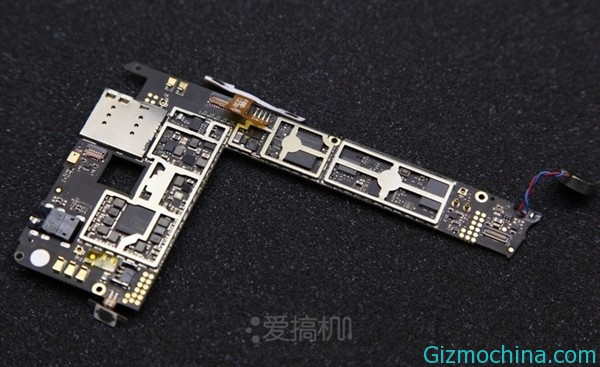

The back of the circuit board

s_d8a9f180381d4402ad04364a46393be6

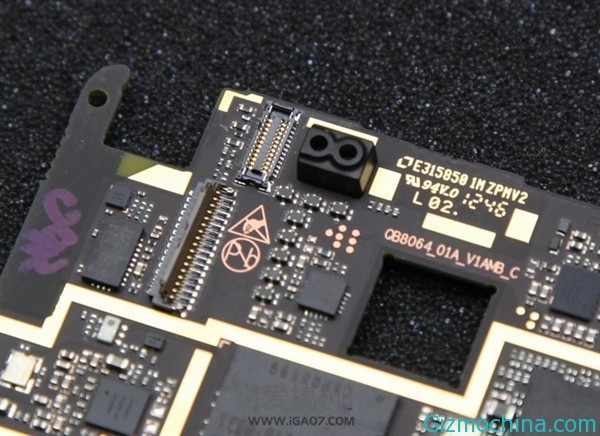

Here is a light and proximity sensors

s_3701867f421d47ce815400dedb1781bb

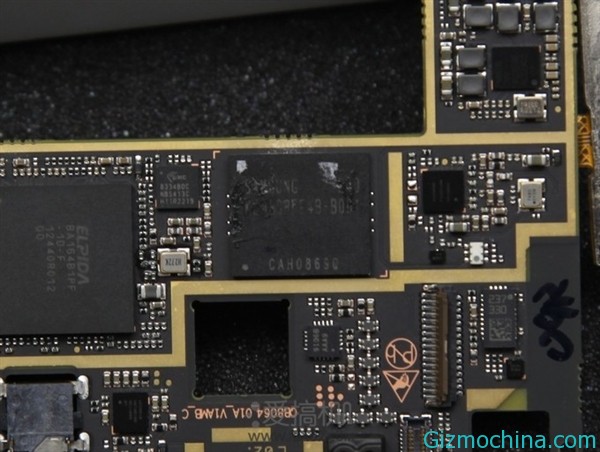

Samsung’s flash memory chips, 16GB capacity

s_9432f67bc4db43c084af81ad2d71a9cf

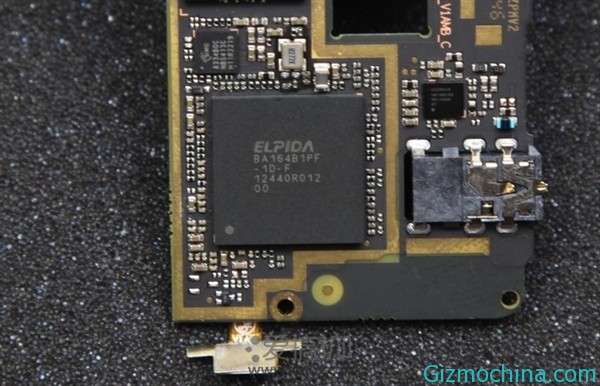

Elpida 2GB of memory chips, Qualcomm APQ8064 processor package below.

s_cb973dfeec384d489778d58e9bbd135e

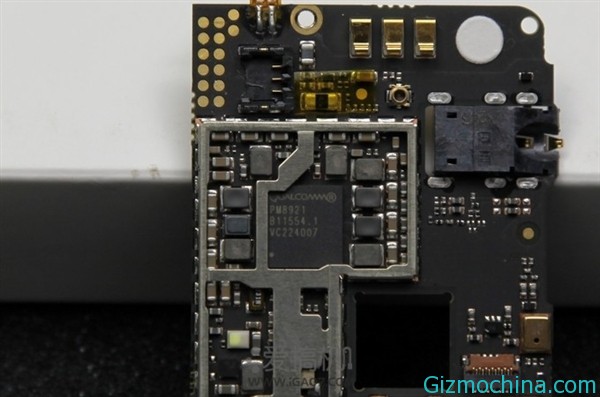

Qualcomm PM8921 power management chip, APQ8064 processor phones were powered by this chip.

s_b7a431cf1fe24f9781a8b0cbabc9c3d7

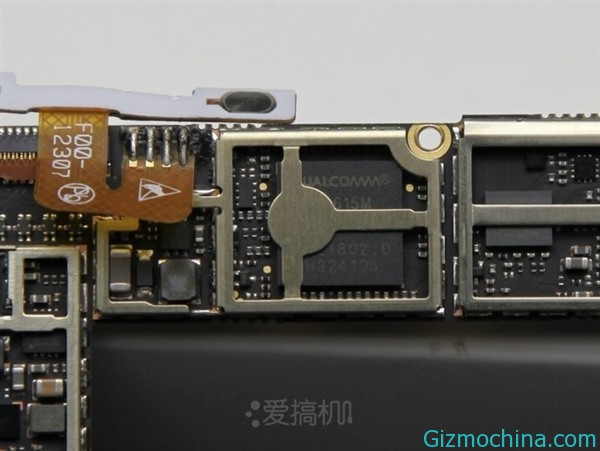

Qualcomm MDM9615 baseband chip, support CDMA, WCDMA and GSM network standard, reached the so-called three-Netcom eat.

s_42a360fdca134b7bb2068a19eac37d66

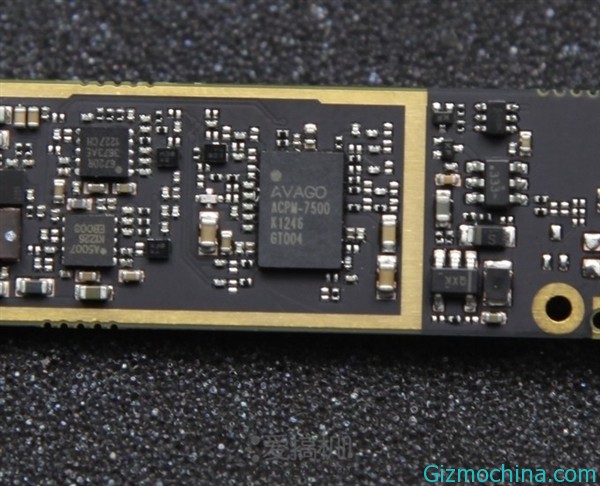

Avago’s ACPM-7500 RF amplifier chip

s_83275305afa5404389a4c684d426d2ce

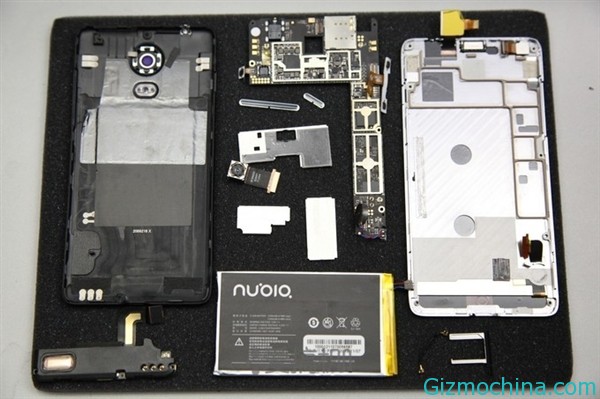

Finally, here are the whole parts of Nubia Z5 smartphone
