Tear down: Meizu MX4

by Frank Tu 1

1-140915094230357 1-140915094501604

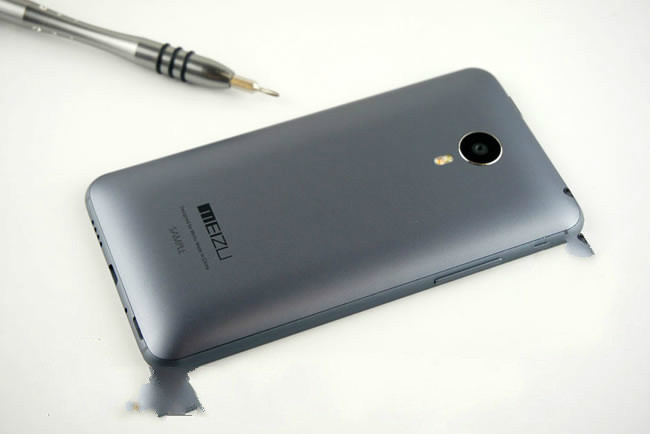

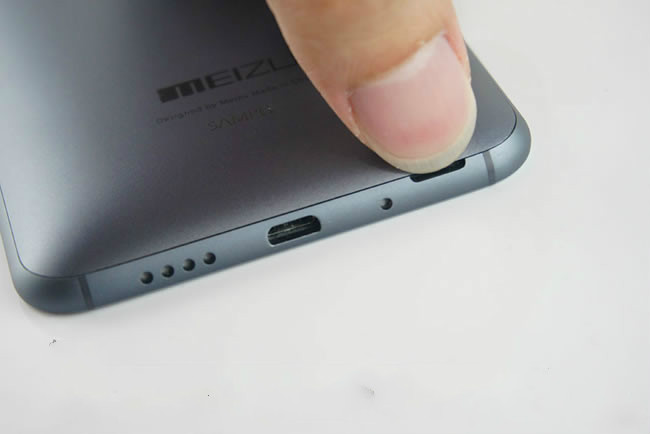

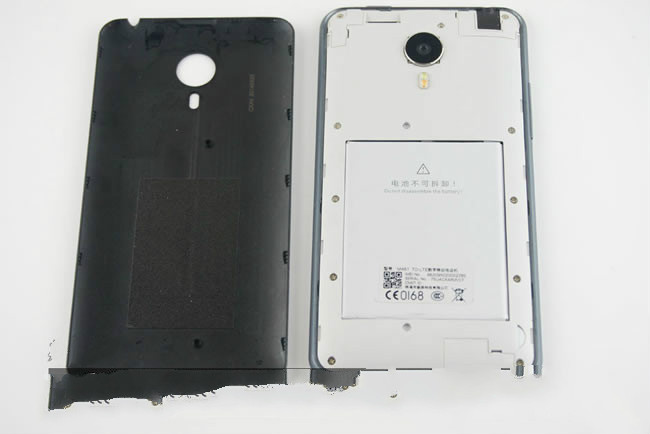

Before, you needed something like a needle to open the rear case, but now you can open it with a finger.

1-140915094245A3



























1-140915094254W0 1-140915094311230

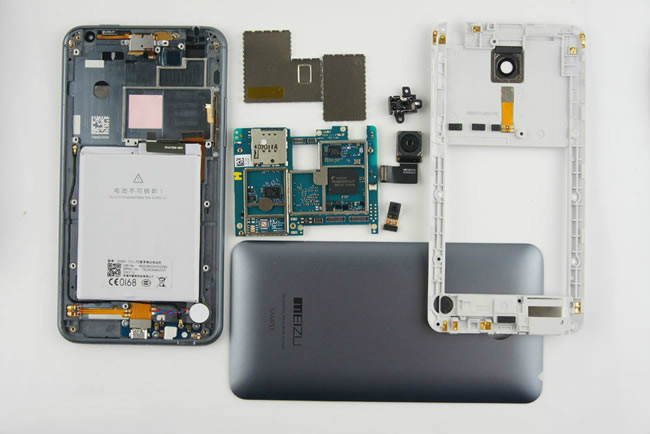

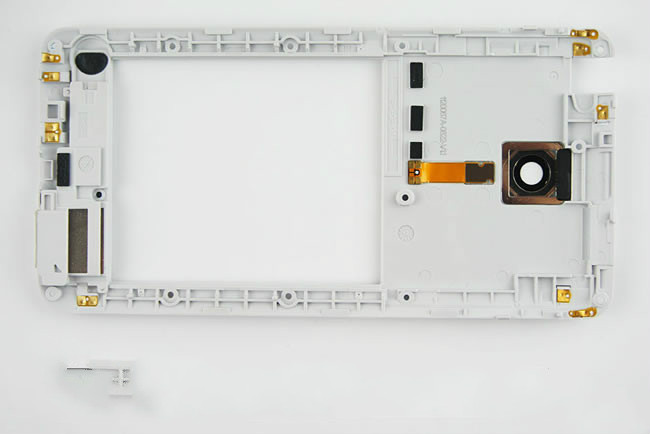

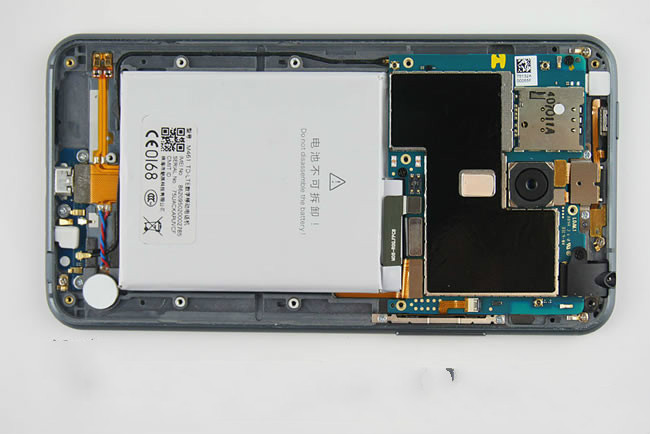

The interior of the phone. The motherboard does not take up a lot of space.

1-140915094320541

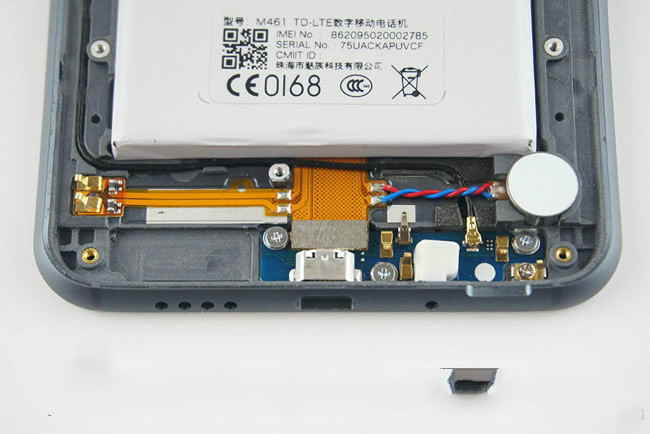

At the bottom are the cable port and vibrator.

1-140915094329301

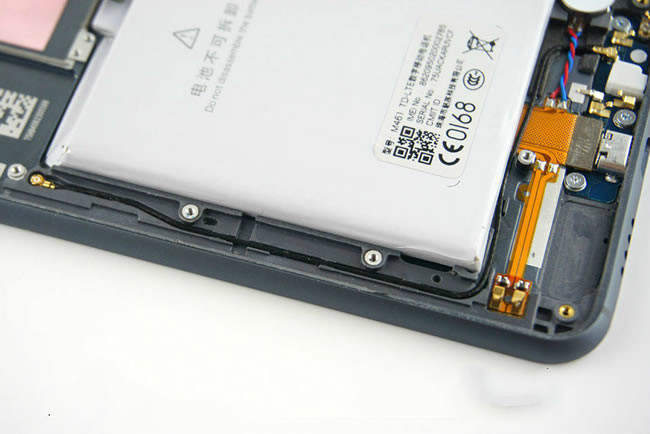

At the side of the phone is a high-frequency signal concentric wire.

1-14091509433H13 1-140915094352E0

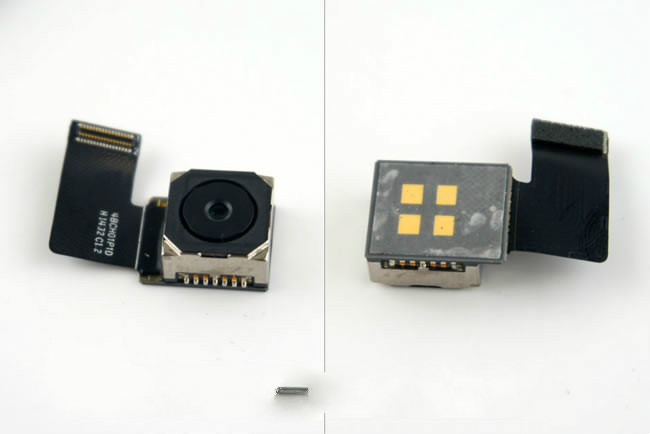

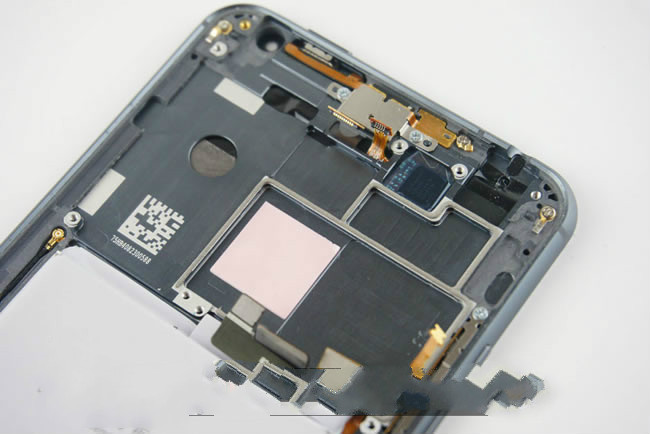

The MX4’s 20.7mp (Sony INMX 220, 1/2.3-inch light sensor) rear camera

1-1409150944051Y

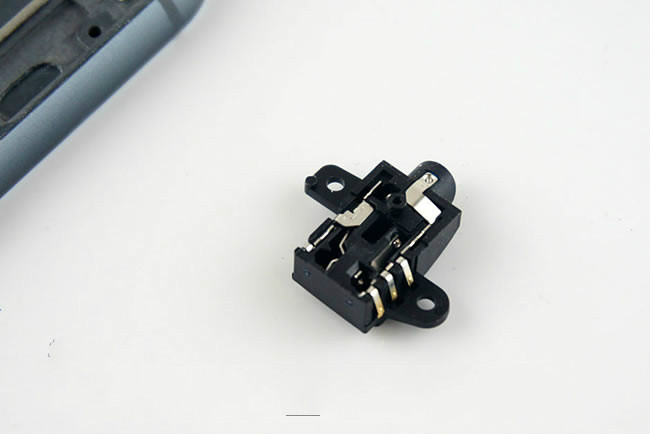

3.5mm earphone jack, designed specifically for the MX4

1-140915094415M4

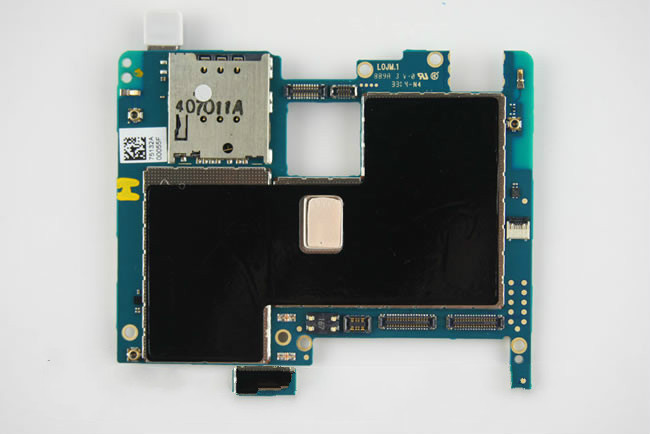

The motherboard is covered by a graphite heat chip. It looks clean and simple.

1-140915094425S2

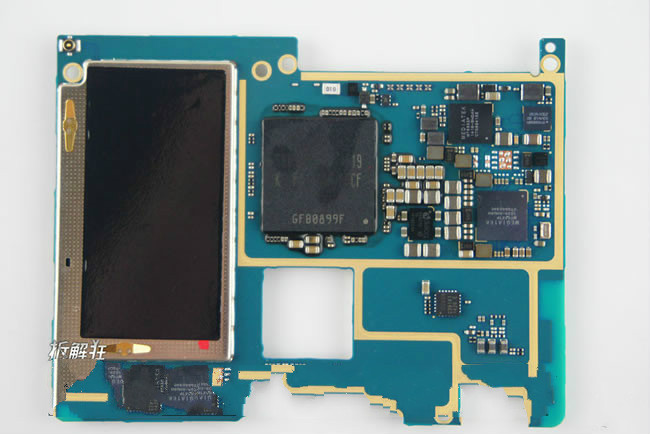

There is also a graphite heat chip on the other side of the motherboard but it is not as easy to remove.

1-140915094435U7



























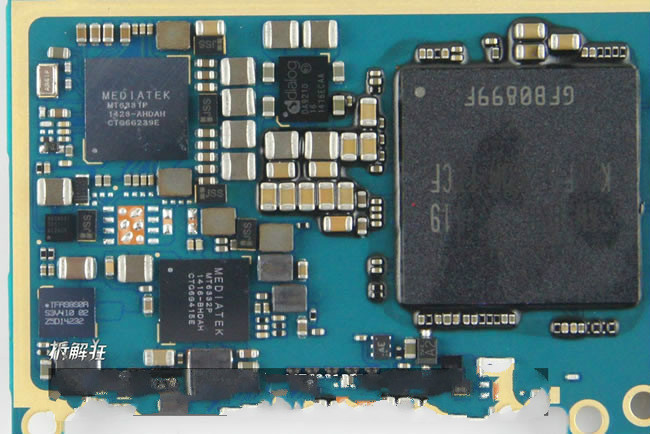

Dialog DA9210, MT6331P, and MT6332P are all MTK chips. The biggest chip on the right is the Samsung RAM chip. Below it is the MT6595 octa-core chip.
