Pioneer K88L tear-down

by Frank Tu 1

The Pioneer K88L phone, which costs 1799 RMB (293.04 USD), is one of the few 5-mode/13-frequency devices to use a processor from MediaTek. It also comes with an NFC function and Dolby Audio. It sports a 5.5-inch HD display screen, an octa-core processor, and 13mp camera.



Having said that, let us take a look at what this phone is made of. Behold! The Pioneer K88L tear-down!

1-141004003622

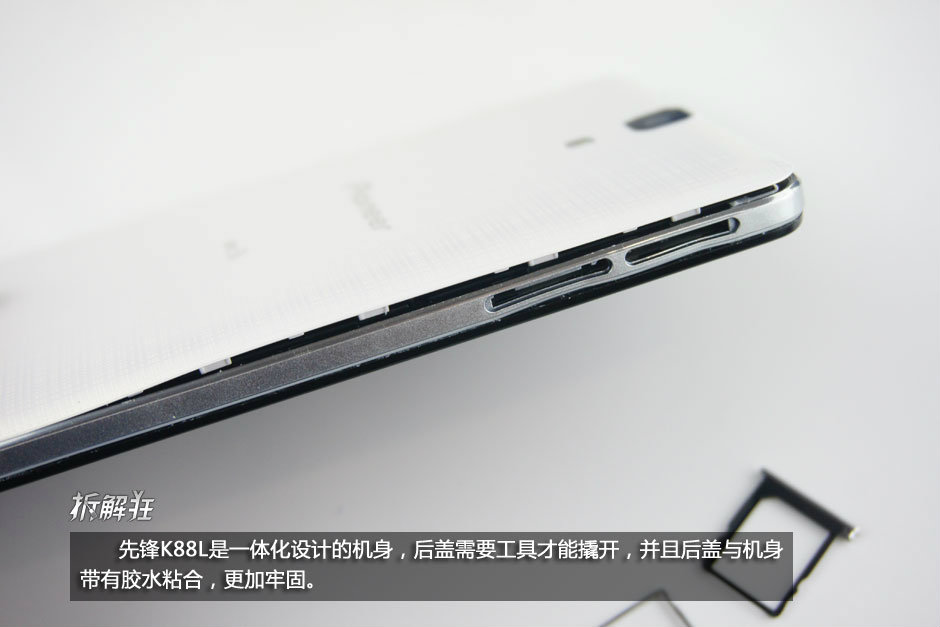

This phone boasts a unibody design and you will need a tool to unscrew the rear case. Furthermore, the rear case and the phone’s body by a strong glue that makes it hard to separate them.

1-141004003627

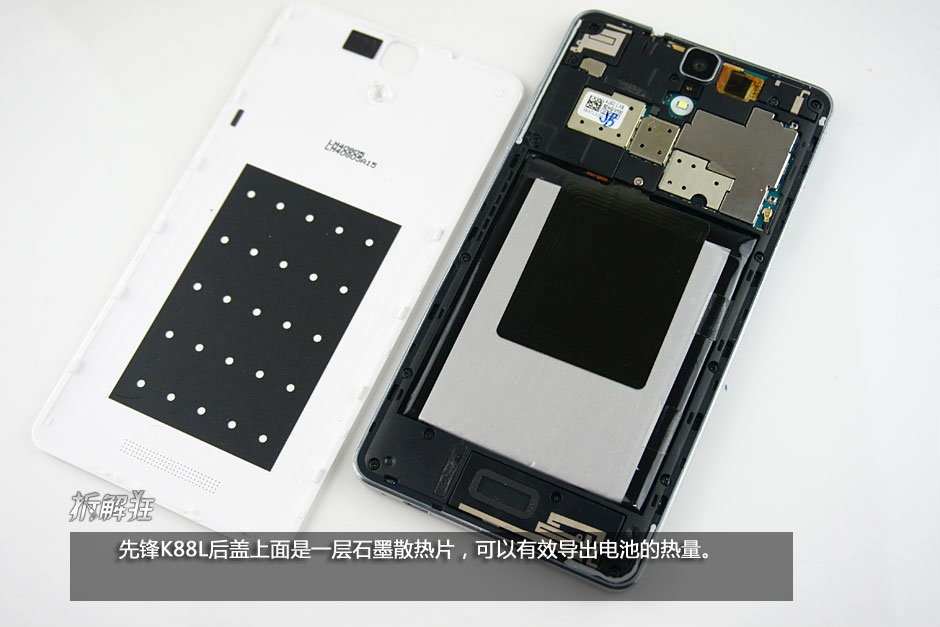

On the rear-case is a thermal graphite sheet which can temper the phone’s battery heat.

1-141004003635

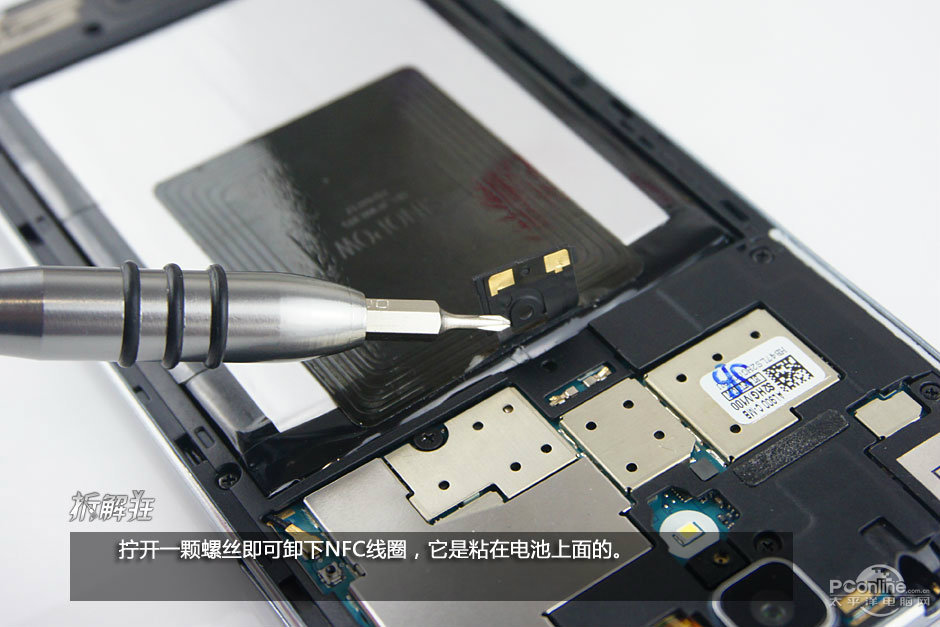

Here’s the NFC wire wrapped in a coil glued above the battery.

1-141004003641



After unscrewing many bolts, you can take out the phone’s mid-frame.

1-141004003645

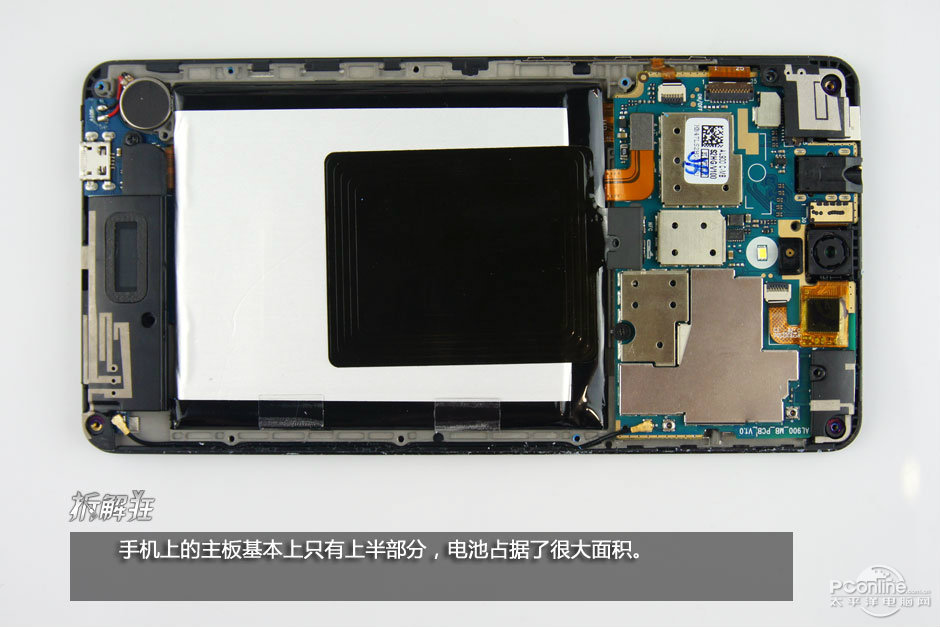

The motherboard is located at the upper half of the phone where the battery takes up the most space.

1-141004003649

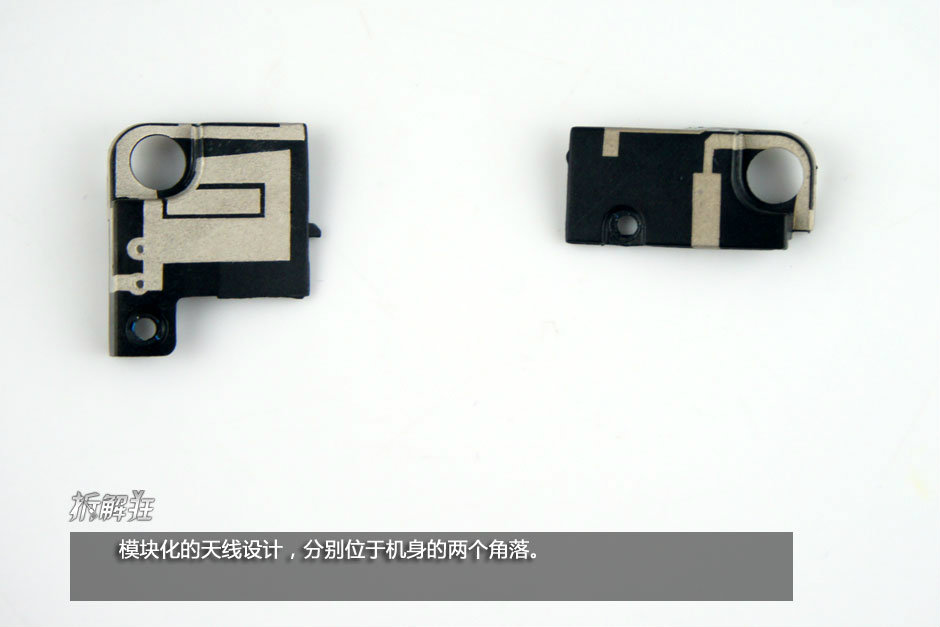

The antennas are located on two corners of the phone.

1-141004003A3

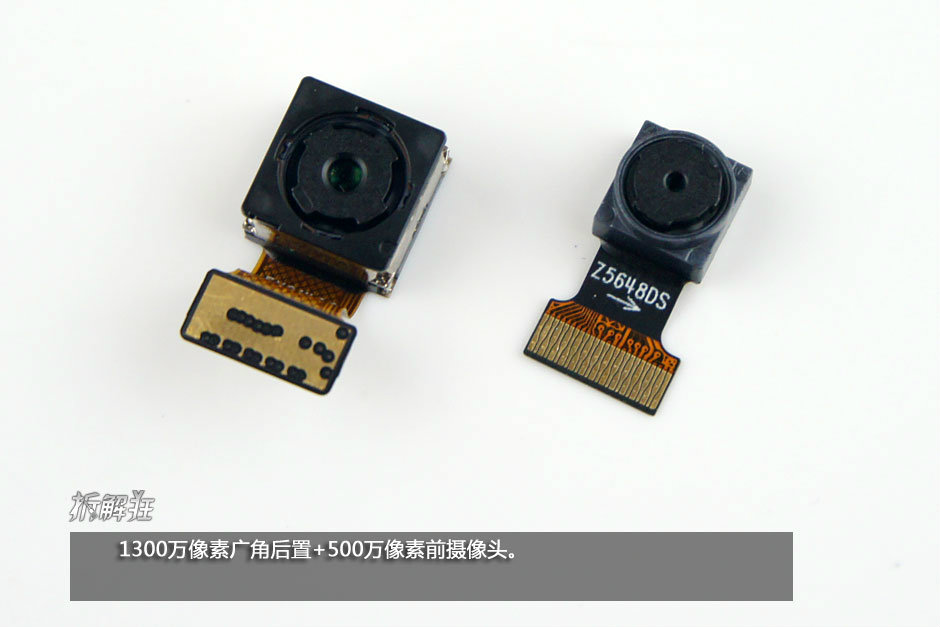

Do you like to take nice scenic shots? Use the Pioneer K88L’s 13mp rear-facing wide angle camera (left). If you are vain and like to take selfies, use the 5mp front-facing camera (right).

1-141004003A8

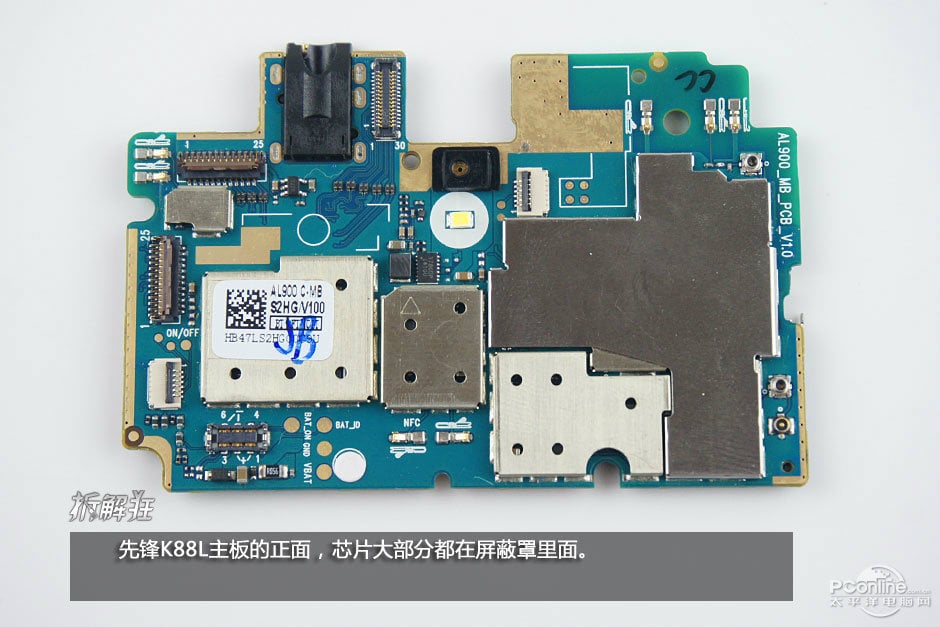

Here’s the front side of the motherboard where most of the chips are hidden under a shielding case.

1-141004003G1

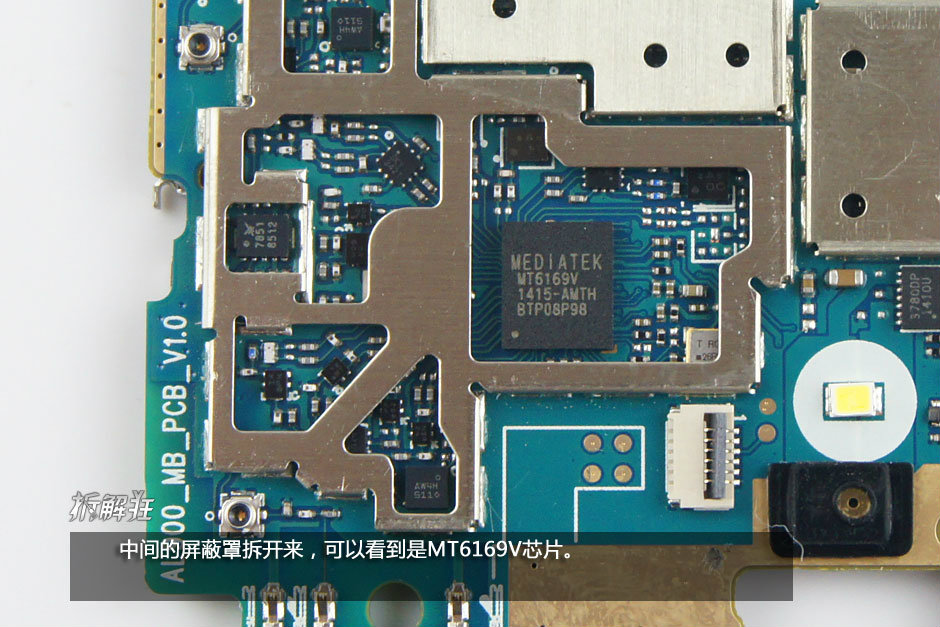

After taking off the shielding case, you can see the MT6169V chip in the middle.

1-141004003G5

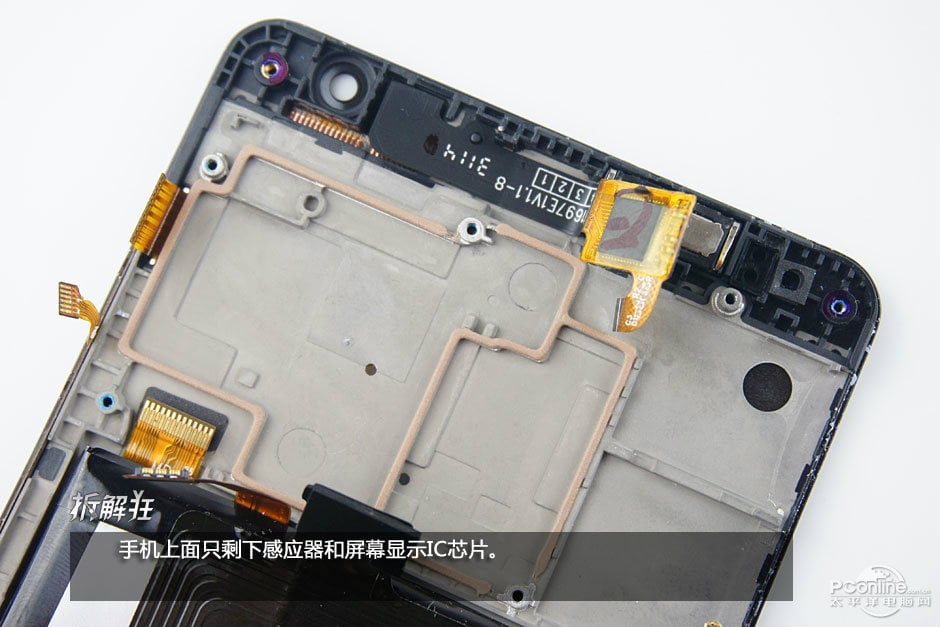

At the upper part of the phone are the sensor and IC display chip.

1-141004003H0



The K88L supports Dolby Sound, and it’s all thanks to this.

1-141004003H9



And here’s all the components, from the motherboard and its chips to the cameras and cases.

1-141004003I3

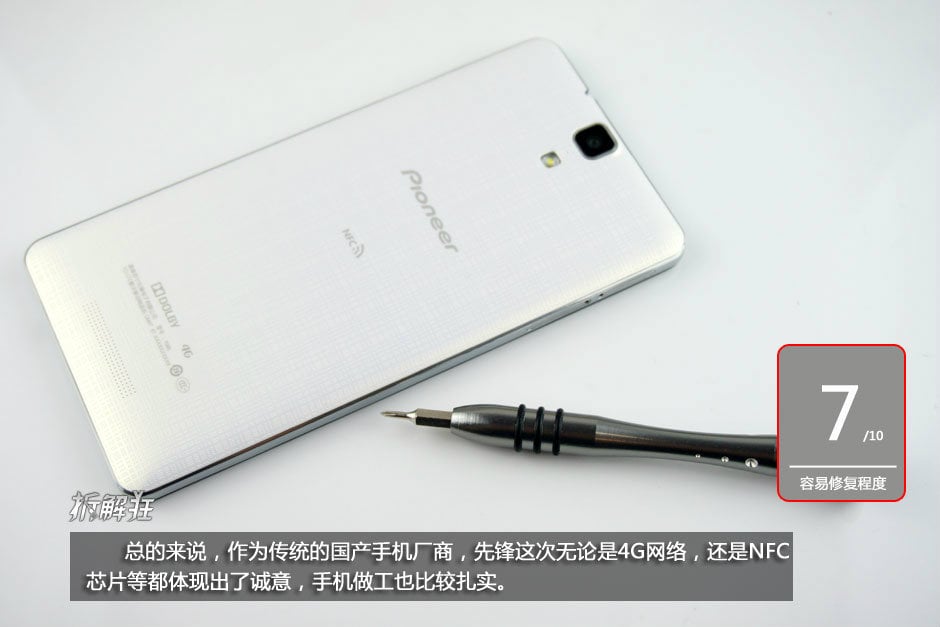

Overall, just as you would expect from a Chinese cellphone company, Pioneer never forgets to add NFC chips and many others as well as producing such a sturdy phone.
