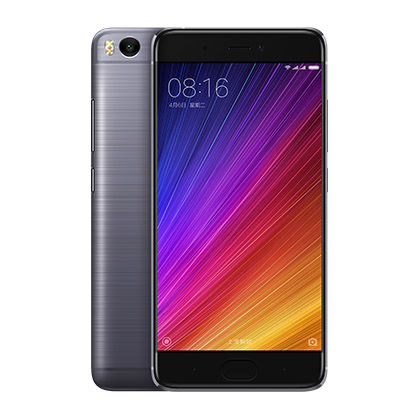

Xiaomi Mi 5S

Brand: Xiaomi
Category: Mobiles

Processor: Qualcomm Snapdragon 821
RAM: 3GB/4GB
Storage: 64GB/128GB
Display: 5.15 inch, 1920x1080pixel
Camera: Rear: 12MP; Front: 8MP
Operating System: MIUI 8 base on Android

Xiaomi Mi 5S - PRICE

Xiaomi Mi 5S From $349
View Offer

Our Rating

The overall rating is based on review by our editors

9.0 4.5 1

Design 8 / 10
Display 9 / 10
Camera 9 / 10
Features 10 / 10
Connectivity 9 / 10
Usability 9 / 10
Performance 9 / 10
Battery 8 / 10

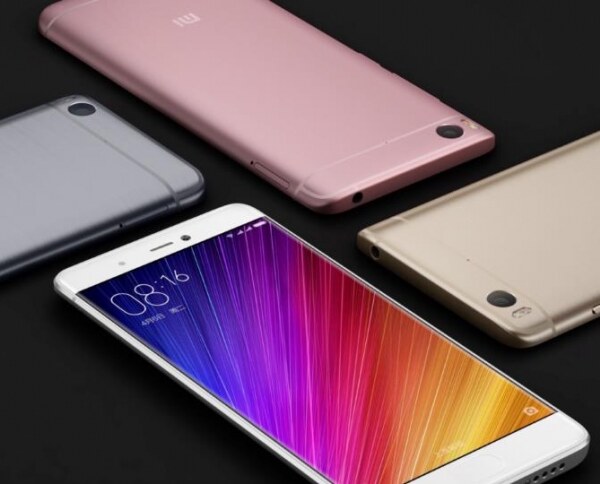

The Xiaomi Mi 5S comes with an all metal design with four color options, dark gray, silver, gold and rose gold. It’s curvier and smoother in terms of design as compared to its predecessor. The metal gets a matte anodizing finish to give it a unique look. On the front, the phone features 2.5D glass, giving it a slightly curved feel.

Dimensions: 145.6 x 70.3 x 8.25mm | Weight: 145 grams

As expected, the Xiaomi Mi 5S comes with the powerful Snapdragon 821 chipset, which is the upgraded version of the already powerful Snapdragon 820. Then there’s LPDDR4 RAM and 64GB / 128GB UFS 2.0 high-speed memory on the device. There will be two variants: 3GB + 64GB and 4GB + 128GB.

The phone features a 5.15-inch custom high-brightness 1920 x 1080p display with brightness up to 600 nits. Other features of the display include NTSC color gamut coverage up to 95% and high color saturation. What’s also special about this display is that it supports pressure sensitivity but only in the 4GB + 128GB model!

While these specs are pretty good, what’s really the highlight of the Xiaomi Mi 5S is its ultrasonic fingerprint sensor. Yes, it will be the first mass produced smartphone to feature the advanced ultrasonic fingerprint sensor. This 3D sensor enabled seamless integration of panels unlike other capacitive sensors. Further, it’s quick, accurate and long lasting. The sensor is located below the glass, without the need for any opening in the display panel.

The camera is yet another highlight of the Xiaomi Mi 5S. The phone comes with a 12MP Sony IMX378 1/2.3″ 1.55um sensor , which is 61% larger than the one inside the iPhone 6S Plus. Since the sensor size is bigger, Xiaomi claims that the phone is able to capture stellar photos, even at night. However, note that this is a single camera module. Only the Mi 5S Plus comes with the dual camera module at the back.

Other specs of the camera module include f/2.0, 6P lens, 80 degree wide angle, dual LED dual tone color temperature flash, PDAF, Second Gen. Qualcomm ISP, facial recognition, auto HDR and Panorama. The camera supports 4K shooting at 30 fps, 1080p at 120 fps and slo-mo 720p at 120 fps.

Up front, you get a 4MP Ultrapixel camera with f/2.o aperture, 80 degree wide angle lens, facial recognition etc.

The Xiaomi Mi 5S also comes with NFC and 4G+ technologies. So, it should support fingerprint enabled payment systems like Xiaomi Pay in China. Other specs include 802.1 ac dual band Wi-Fi with MU-MIMO, Bluetooth 4.2, Bluetooth HID, Wi-Fi Direct and Wi-Fi Display.

Supported LTE bands include:

FDD-LTE B1, B3, B5, B7 and B8

TDD-LTE B38, B39, B40 and B41

The battery is of 3200mAh capacity with QC 3.0 support (9V 2A) using the USB Type-C port.

Xiaomi Mi 5S - SPECIFICATIONS

General

Model

Xiaomi Mi 5S
Released

27-09-2016
Status

Available

Design

Type Design Type called form factor refers to a mobile phone's size, shape, and style as well as the layout and position of major components of phone. There are three major form factors seen in mobile phones => bar phones, folding phones and sliding phones.

Bar
Dimensions

145.6mmx70.3mmx8.25mm
Weight

145g
Waterproof

No

Display

Display Type Display Technology => A number of display technologies and types used in mobile phones => TFT (Thin Film Transistor), IPS (In-Place Switching), OLED (Organic Light Emitting Diode), AMOLED (Active-Matrix Organic Light-Emitting Diode), Super AMOLED (an even advanced version of AMOLED), Resistive Touchscreen (Resistive touchscreens contain two layer of conductive material with a very small gap between them which acts as a resistance), Capacitive Touchsceen (Capacitive touchscreen technology consists of a layer of glass coated with a transparent conductor)

LCD
Size

5.15-inch
Resolution

1920x1080 pixels
Display Colors Display Colors is refers to the number of different shades of colors that the screen is capable of displaying => 64K colors, 256K colors and 16 million colors, Obviously 16M is highest available range of colors and better than others.

600nit, 94%NTSC
Pixel Density Pixel Density (PPI) is refers to the concentration of pixels on a particular display, measured in pixels per inch (ppi). Pixel density is calculated by dividing the diagonal pixel resolution of a display by its diagonal size, higher pixel density better display quality.

428 PPI
Touch Screen

Yes, the advanced version support 3D touch
Display Protection Display Protection => Gorilla Glass is a special alkali-aluminosilicate glass shield with exceptional damage resistance that helps protect mobile displays from scratches, drops, and bumps of everyday use, It is always better to go for a smartphone with Gorilla Glass for that added protection and peace of mind.

Glass

Hardware

GPU GPU (Graphics Processing Unit) is a single-chip processor designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display, This includes things such as lighting effects, object transformations, and 3D motion.

Adreno 530, 624MHz
RAM (Memory) RAM (Random Access Memory) is a type of computer memory that can be accessed randomly, any byte of memory can be accessed without touching the preceding bytes that allows information to be stored and accessed quickly from random locations. RAM is the most common type of memory found in computer systems, smartphones, tablets and other electronic devices.

3GB/4GB
Internal Storage Internal Storage is a data storage space (flash memory) mostly used in smartphones, tablets and other electronic devices where operating system, apps, music, photos, videos, files and other user data Is stored.

64GB/128GB
Memory Card Slot Memory Card Slot is a special slot for inserting a memory card. Memory cards allow you to expand the phone's built-in memory, A memory card (sometimes called a flash memory card or a storage card) is a small storage medium used to store data such as text, pictures, audio, and video, for use on small, portable or remote computing devices such as mobile phones, mp3 players, digital cameras.

No
Sensors Sensors are electronic components that detects and responds to some type of input from the physical environment. The specific input could be light, heat, motion, moisture, pressure and location, The output is generally a signal that is converted to use in computing systems, a location sensor, such as a GPS receiver is able to detect current location of your electronic device.

Ultrasonic Fingerprint Sensor

Software

Operating System OS => Every computer system run on a base software called Operating System (OS). Operating System controls all basic operations of the computer (such as smartphone, PDAs, tablet computers and other handheld devices). The Operating System allows the user to install and run third party applications (apps), apps are used to add new functionality to the device.

MIUI 8 base on Android
User Interface UI or user interface of a device is the look and feel of the on-screen menu system. How it works, its color scheme, how it responds to button presses, all of these things are part of the user interface.

MIUI

Camera

Rear Camera Camera is able to capture photographs and usually videos, The most important characteristics of a camera are the resolution (measured in megapixels), lens focus type (fixed or automatic), higher megapixel cameras are known to capture higher quality photos, but not always a good measurement of the photos quality.

12MP, Sony IMX378, f/2.0
Video

4K@30fps
Flash Flash Light => There is commonly two types of flash lights are used in camera mobile phones, LED Flash (LED flash offers lower power consumption with drive circuitry that takes up very little room, LEDs can be strobed faster than any other light source), Xenon Flash (xenon flash produces an extremely intense full-spectrum white light for a very short duration)

Yes
Front Camera

4MP

Network

SIM SIM (Subscriber Identity Module) is a small card that contains mobile network subscriber's account information. This allows the phone using the card to attach to a mobile network. The SIM card is most commonly associated with GSM and UMTS mobile networks. Moving a SIM card from one phone to another allows a subscriber to switch mobile phones without having to contact their mobile network carrier. SIM cards can also be used by a phone to store limited amounts of data, such as phone numbers and text messages.

Nano SIM
Dual SIM

Yes

Connectivity

Wi-fi Wi-Fi is a popular wireless networking technology using radio waves to provide high-speed network connections that allows devices to communicate without cords or cables, Wi-Fi is increasingly becoming the preferred mode of internet connectivity all over the world.

Yes
USB

USB, type-c
GPS GPS The Global Positioning System is a satellite-based radio navigation system, GPS permits users to determine their position, velocity and the time 24 hours a day, in all weather, anywhere in the world, In order to locate your position, your device or GPS receiver must have a clear view of the sky.

Yes
NFC NFC (Near field communication) is a set of standards for smartphones and similar devices to establish peer-to-peer radio communications with each other by touching them together or bringing them into proximity, usually no more than a few inches.

Yes
Wireless Charging Wireless Charging (Inductive Charging) uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device.

No
Headphone Jack

Yes
