After the much-anticipated wait, Khadas officially launched their latest Hi-Fi DAC, Tone 2 Pro on December 16th. It is an ultra-slim desktop DAC that features a high-end ES9038Q2M DAC chip from Sabre technologies along with four high-performance OPA1612 Operational Amplifiers. This unit is fully up to date with MQA decoding support to offer a high-quality audio experience. However, the highlight of Tone 2 Pro is the Balanced RCA plugs that have three layers to provide better connectivity and functionality while maintaining their compact size.

Just before the launch of Khadas Tone 2 Pro, the company released all its technical parameters; let’s check them out.Khadas Tone 2 Pro-2

DAC Performance(Balanced RCA)

  • THD+N- 0.000126%(-118dB)
  • THD+N, A-Weighted- 0.000112%(-119dB)
  • Noise- 3.5uVrms
  • Noise, A-Weighted- 2.75uVrms
  • DNR- 121dB
  • DNR, A-Weighted- 123.5dB
  • Crosstalk, 200kΩ- >120dB
  • Output, 200kΩ- 4.0Vrms
  • Frequency Response- 20Hz-20kHz, ±0.15dB

DAC Performance(RCA Single-Ended)

  • THD+N- 0.000158%(-116dB)
  • THD+N, A-Weighted- 0.000141%(-117dB)
  • Noise- 2.0uVrms
  • Noise, A-Weighted- 1.6uVrms
  • DNR- 119dB
  • DNR, A-Weighted- 122dB
  • Crosstalk, 100kΩ- >118dB
  • Output, 100kΩ- 2.0Vrms
  • Frequency Response 20Hz-20kHz, ±0.15dB

Headphone Amplifier Performance(4.4mm Balanced Port)

  • Output Impedance- 2.4Ω
  • THD+N, 1kHz, 300Ω- 0.000158%(-116dB)
  • THD+N, 1kHz, 150Ω- 0.000158%(-116dB)
  • THD+N, 1kHz, 32Ω- 0.000282%(-111dB)
  • Noise- <4.2uVrms
  • DNR- 121dB
  • Max Output @300Ω- 83mW(5.0Vrms)
  • Max Output @150Ω- 167mW(5.0Vrms)
  • Max Output @32Ω- 211mW(2.6Vrms)
  • Max Output @16Ω- 123mW(1.4Vrms)
  • Crosstalk, 32Ω- >117dB
  • Frequency Response- 20Hz-20kHz, ±0.15dB

Headphone Amplifier Performance(3.5mm Single-Ended)

  • Output Impedance- 1.2Ω
  • THD+N, 1kHz, 150Ω- 0.000200%(-114dB)
  • THD+N, 1kHz, 32Ω- 0.000282%(-111dB)
  • Noise- <2.4uVrms
  • DNR- 119dB
  • Max Output @150Ω- 35.3mW(2.3Vrms)
  • Max Output @32Ω- 125mW(2.0Vrms)
  • Max Output @16Ω- 114mW(1.35Vrms)
  • Crosstalk, 32Ω- >69dB
  • Frequency Response- 20Hz-20kHz, ±0.15dB

DAC Sampling Rate Support

  • USB Input- PCM 384kHz/32-Bit
  • USB Input- DSD512 Natively
  • Coaxial Input- 192kHz/24Bit

USB Processor

  • XMOS XU216, 16 Real-time Logical Cores

DAC Chipset

  • ESS ES9038Q2M, 32-Bit Stereo Mobile Audio DAC

Amplifier Chipsets

  • I/V Stage- TI OPA1612x2
  • LPF Stage- TI OPA1612x2
  • Buffer Stage- RT6863Dx3

Ultra-Low Noise LDOs

  • 1xESS ES9311Q, 1.3uVrms(10Hz-100kHz)
  • 5xADI ADP151, 9uVrms(10Hz-100kHz)

Jitter Filter Technology

  • Built-in Intel Altera MAX V CPLD, Pre-shaping Technology
  • Accusilicon AS318-B Series Professional Audiophile Crystal Oscillator

OS Compatibility

  • Windows 7, 8, 10(Khadas USB ASIO driver required)
  • MacOS
  • Linux(with UAC2 compliant kernel)
  • Android(Support OTG function)
  • iPadOS & iOS

Rated Voltage

  • DC 5V

Compliances

  • CE, FCC, RoHSKhadas Tone 2 Pro-

High-Grade Output

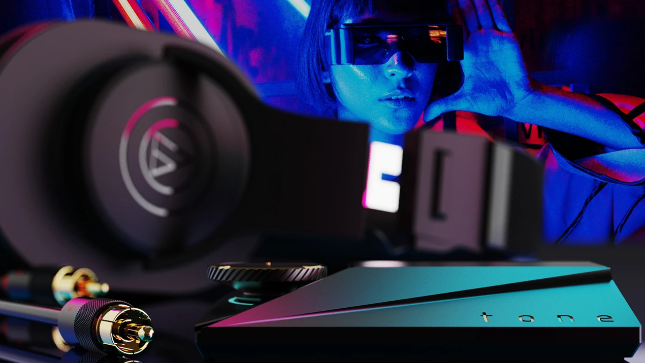

Tone 2 Pro has a distortion rate of around 0.000126% (Bal RCA) /0.000158% (4.4mm) and low noise levels of less than 4.2uVrms to offer superior sound quality. One can expect a crisp output with ultra-low distortion and a pitch dark, noise-free background in their audio.Khadas Tone 2 Pro-3

Compatible Gears

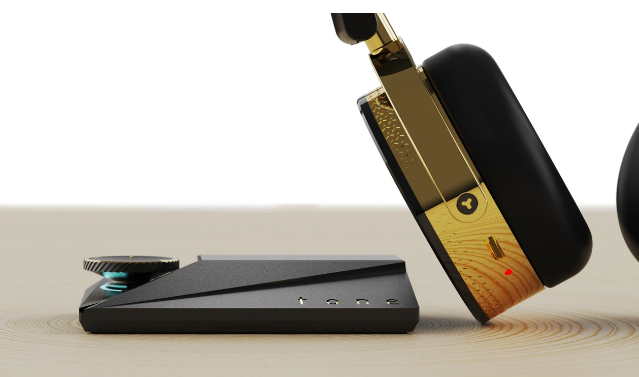

Tone 2 Pro has 4.4mm and 3.5mm output ports with 2.4Ω and 1.2Ω super-low output impedance. It can be conveniently paired with sensitive IEMs or headphones without facing any issues.Khadas Tone 2 Pro-4

Sturdy Built

Each part of Tone 2 Pro is made using high-grade materials to offer durability. Its volume knob and casing are constructed from aircraft-grade aluminum, while the bottom cover is built from ABS plastic and polycarbonate. With a silicone footpad, this unit retains its position and prevents scratching the surface. This Hi-Fi DAC comes in 3 colors- Black, Red, Blue.Khadas Tone 2 Pro-6

Tone 2 Pro is already up for sale and can be pre-ordered for just $179.90 (early-bird price) till January 2nd, 2021. Post that, it will go up to its retail price of just $199. Shipments for the first batch will begin from 29th December. So hurry, and grab yours now.

To know more about this Hi-Fi DAC, click here.

You can also check the link below to get an idea about the product.

https://www.gizmochina.com/2020/11/26/khadas-tone-2-pro-dac-will-soon-launch-on-hifigo/
