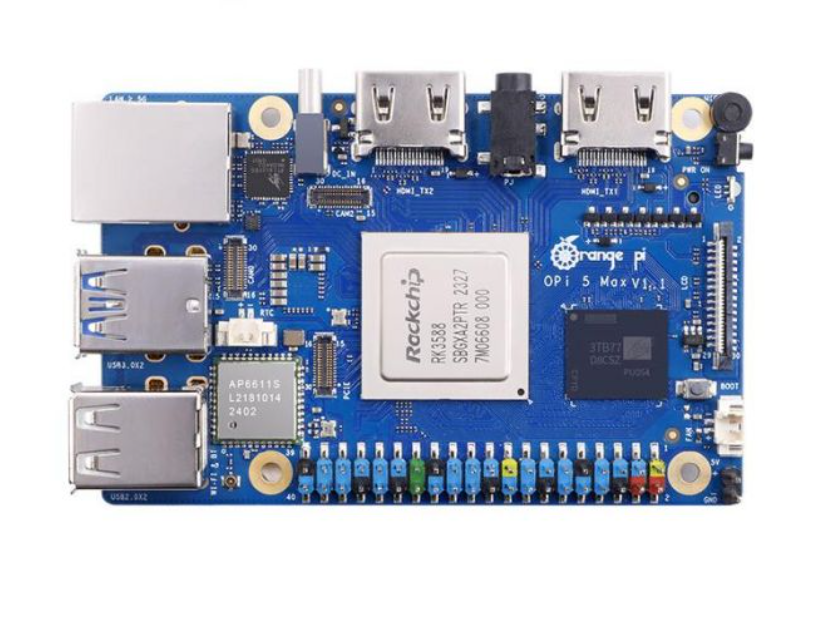

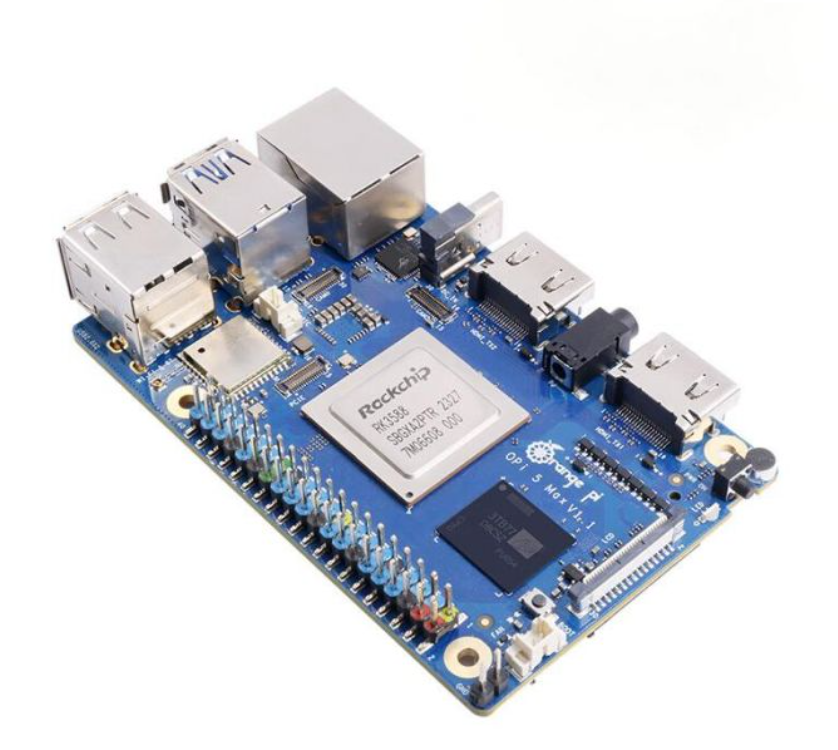

The OrangePi 5 MAX is a compact yet powerful PCB designed for high-end tablets, edge computing, artificial intelligence, VR/AR, smart security, and smart home applications. yOu can now buy this PCB for $119 at GeekWills.
OrangePi 5 MAX is powered by the Rockchip RK3588, an 8-core 64-bit processor with 4 Cortex-A76 cores running at 2.4GHz and 4 Cortex-A55 cores at 1.8GHz, supplemented by an independent NEON coprocessor. This robust setup ensures exceptional performance for demanding tasks.
Equipped with a 6TOPS NPU, the OrangePi 5 MAX supports INT4/INT8/INT16 hybrid computing, making it ideal for developing AI applications. The board comes with 4GB, 8GB, or 16GB of LPDDR5 memory, which offers higher data rates and lower power consumption, essential for running large applications and complex 3D games efficiently.
The OrangePi 5 MAX supports dual HDMI 2.1 ports, capable of delivering up to 8K at 60FPS, along with a 4-lane MIPI DSI, making it perfect for high-end applications such as VR cameras and deep vision. It also features dual 4-lane MIPI CSI camera ports and an additional MIPI D-PHY port, enhancing its capabilities for video and imaging projects.
For connectivity, the board includes onboard Wi-Fi 6E and Bluetooth 5.3/BLE module, ensuring high-speed wireless communication. It supports 8K video decoding, thanks to its powerful 8-core CPU and 8nm process, providing clear picture quality and a smooth user experience.

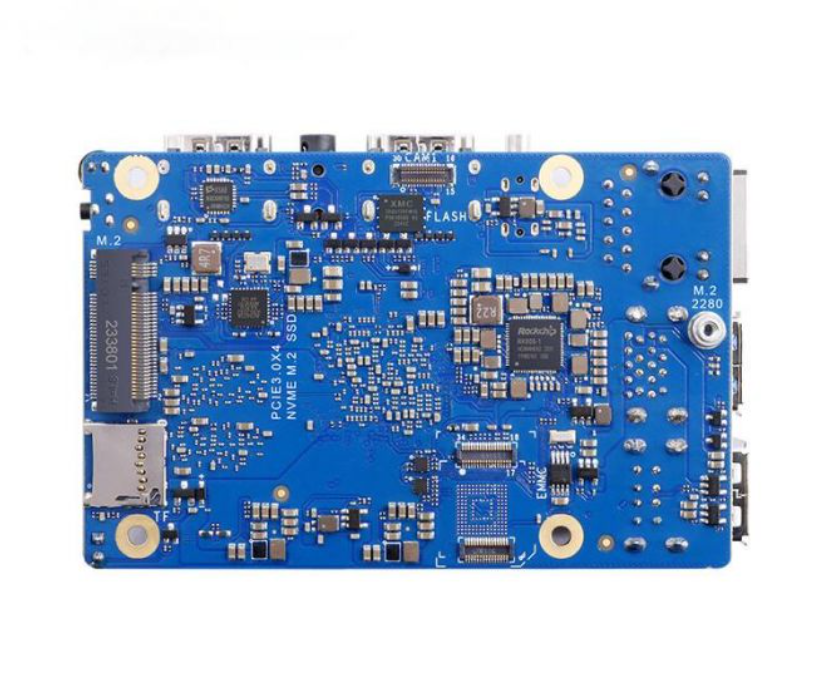

The OrangePi 5 MAX offers abundant interfaces, including HDMI output, GPIO interface, USB 2.0, USB 3.0, a 3.5mm headphone socket, a PCIe extended 2.5G high-speed network port, and an M.2 M-Key slot for NVMe or SATA SSDs. This extensive range of interfaces ensures versatile connectivity options for various peripherals and expansions.
The board’s compact size of 89 x 57 x 1.6mm makes it suitable for a wide range of applications where space is at a premium. It supports multiple operating systems, including Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS (OH), Ubuntu, Debian, and Android 12, providing flexibility for developers.
OrangePi 5 MAX with its advanced features and robust performance, is an excellent choice for both enthusiasts and professionals.
