FiiO BTR17 is a versatile, high-performing Bluetooth DAC and headphone amplifier designed for audiophiles demanding premium sound quality and functionality. With advanced technology and multiple modes of operation, this device is perfect for anyone looking to enhance their music experience, whether at home or on the go.

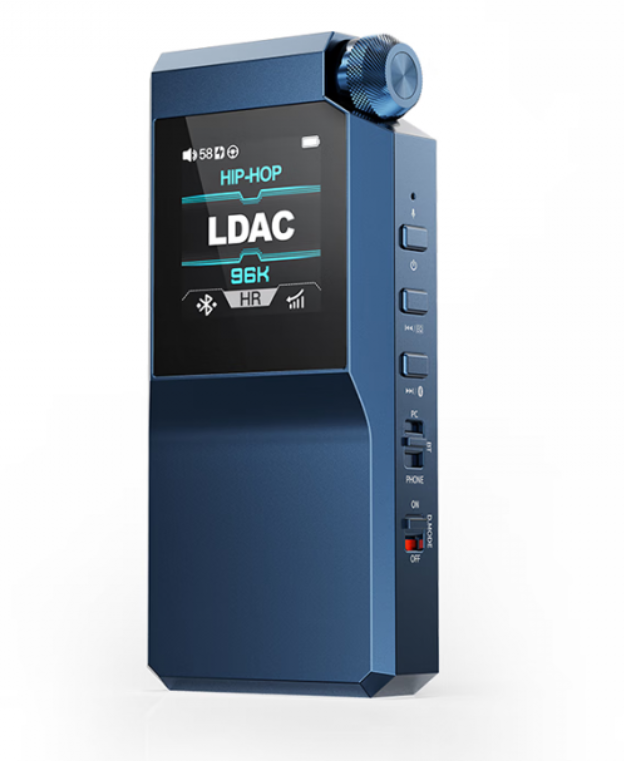

1.3-inch IPS Display
The BTR17 features a 1.3-inch IPS display with a sharp 240×240 pixel resolution. This screen provides clear and detailed information about the device’s settings, making it easy to monitor and control your audio experience.
High-Quality ES9069Q Dual DAC Chipset
At the heart of the FiiO BTR17 are two ES9069Q DAC chips. These high-end components employ fourth-generation 32-bit HyperStream architecture, which reduces crosstalk and delivers purer, high-resolution audio. This ensures a rich and immersive sound experience, making your music come alive with incredible detail and depth.
Multiple Use Modes
The BTR17 is a multifunctional device that can operate in three different modes:
- PC Mode: Connect to your computer and use the BTR17 as a USB DAC and headphone amplifier, fully powered by the computer.
- BT Mode: Use the device as a Bluetooth decoder and headphone amplifier. It supports wireless playback via its internal battery, which can be charged using USB.
- Phone Mode: Connect to your phone as a USB DAC audio dongle. In this mode, the BTR17 runs on its internal battery to provide optimal performance.
Switching between these modes is easy thanks to a dedicated three-position toggle switch, ensuring seamless transitions for different use cases.
Advanced Bluetooth Technology
Equipped with the latest QCC5181 Bluetooth 5.4 chip, the BTR17 supports advanced audio codecs such as LDAC, aptX Adaptive, aptX HD, and more. This guarantees high-resolution audio streaming with low latency, making it ideal for wireless listening without sacrificing sound quality.
Exceptional Power Output
The BTR17 delivers an impressive 650mW per channel in high-power desktop mode, ensuring it can drive a wide range of headphones with ease. This mode uses an independent power supply to maintain stable performance and avoid current overload from connected devices.
Versatile Connectivity Options
For headphone connectivity, the BTR17 includes both a 3.5mm single-ended and a 4.4mm balanced output. The 4.4mm jack is more robust and durable than its predecessor, ensuring reliable connections with high-end headphones. This versatility allows you to use the BTR17 with various headphones without compatibility concerns.
Key Specs:
- Display: 1.3-inch IPS, 240×240 resolution
- DAC: Dual ES9069Q chips
- Bluetooth Chip: QCC5181, Bluetooth 5.4
- Battery Life: Up to 8 hours
- Charging Time: 2 hours
- Outputs: 3.5mm single-ended, 4.4mm balanced
- Output Power: 650mW per channel (desktop mode)
- Package Includes: BTR17, Dual Type-C data cable
With its high-quality components, powerful output, and versatile features, the FiiO BTR17 is an excellent choice for audiophiles and casual listeners alike. Whether you’re streaming music wirelessly, using it as a sound card, or connecting it to your phone, the BTR17 ensures exceptional sound quality every time.
