Smartisan Nut Pro 2 Teardown: What Lies Inside The SD 660-Powered Sleek Mid-ranger?

by Jed John 0

Smartisan stunned the tech industry last week when it launched the Snapdragon 660-powered Nut Pro 2 premium mid-range smartphone with a rather cheap price tag. The Smartisan Nut Pro 2 has already been shown in a series of hands-on photos that showcase the outward beauty. Also, we have seen the camera samples of the model which points at a great camera setup. Now, the Nut Pro 2 has been given the teardown treatment, showing the entire design of the internals. Smartisan Nut Pro 2

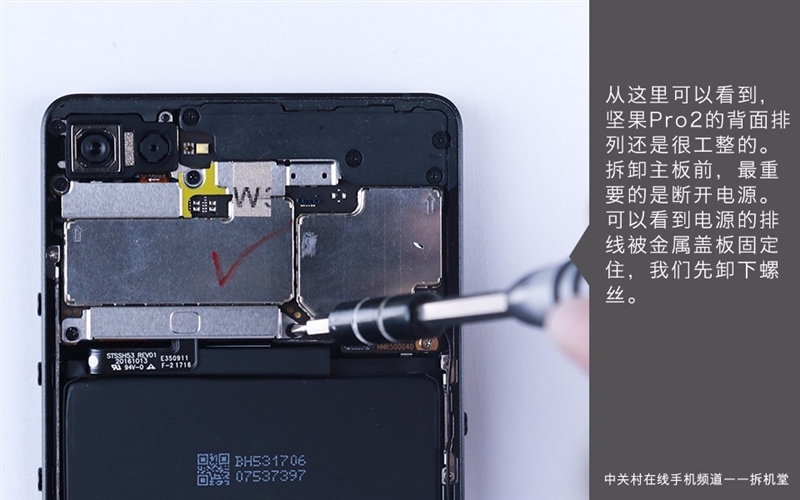

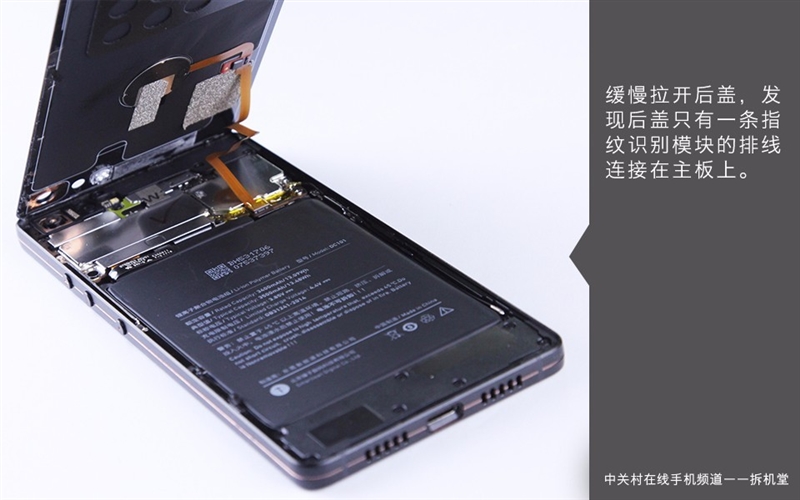

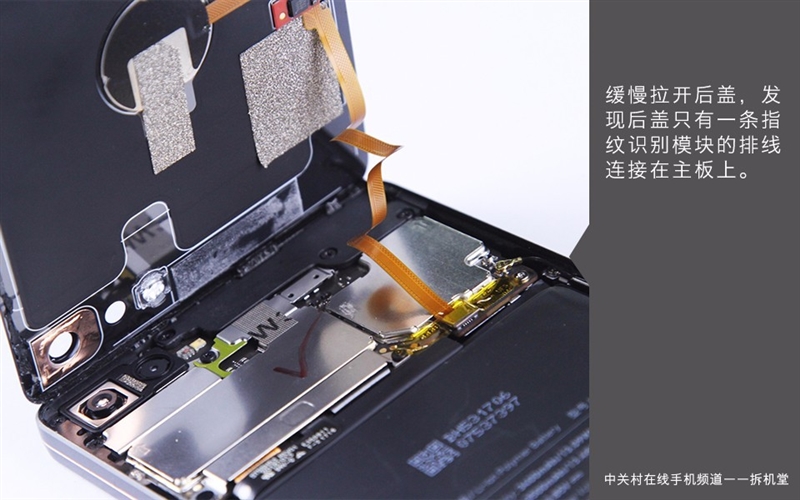

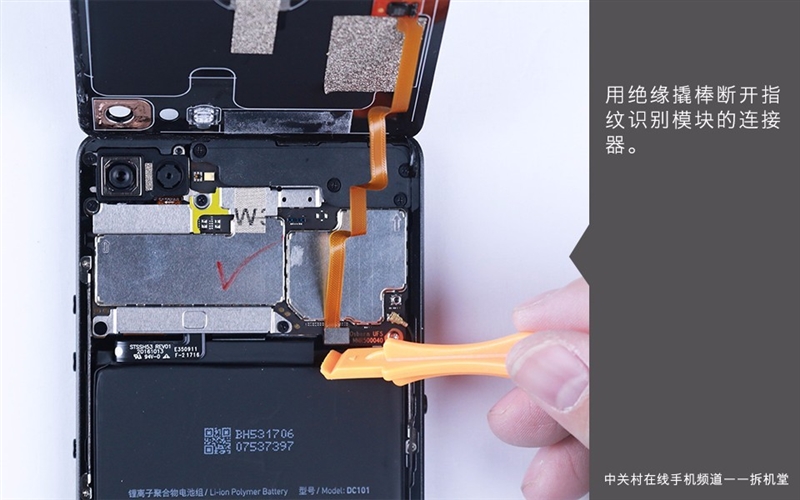

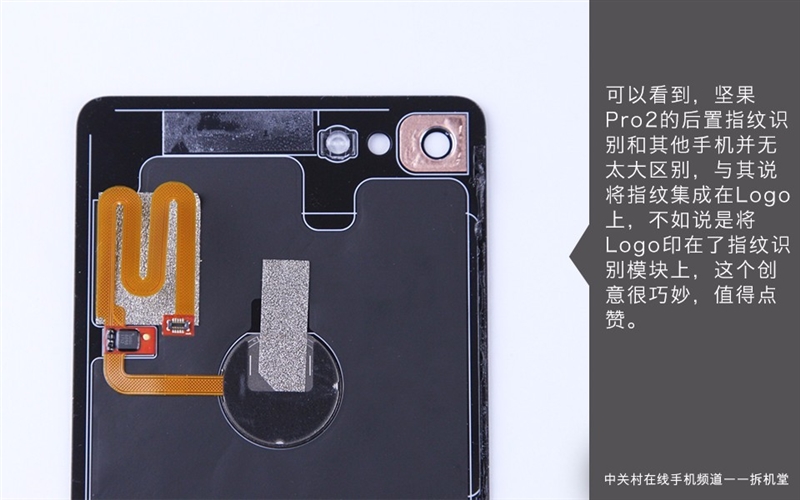

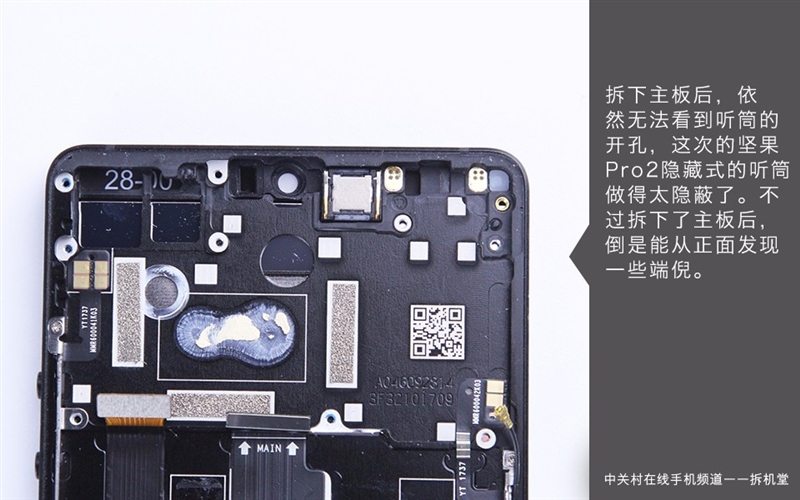

Disassemble photos or videos are not intended to be repair guides even though it can be used to grab an idea of how to open the smartphone in a bid to change a faulty battery or other parts. The Nut Pro 2  like most smartphones come with a non-removable battery and thus, the glass panel at the back is sealed with glue. The service of a heat gun is employed to slightly soften the gum, thereafter a suction cup is used to separate the glass back from the metal fuselage and then you can separate all parts using a pry tool. Removing the back cover reveals the battery and other internals. You can check out photos of the entire process from below.Smartisan Nut Pro 2

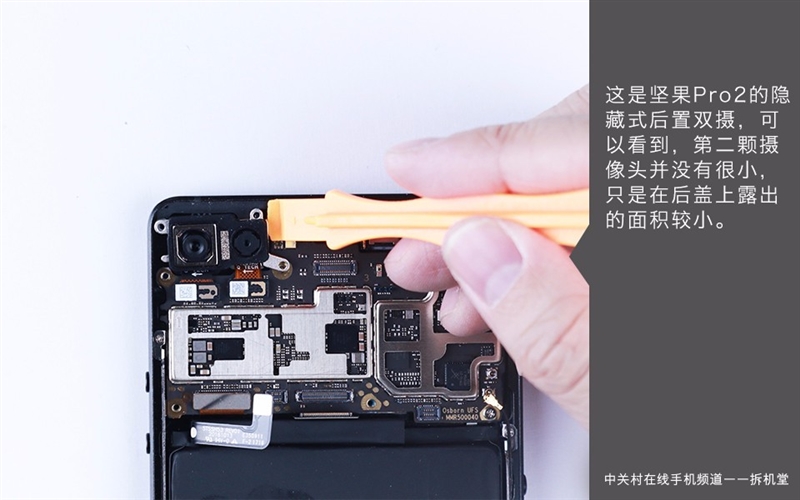

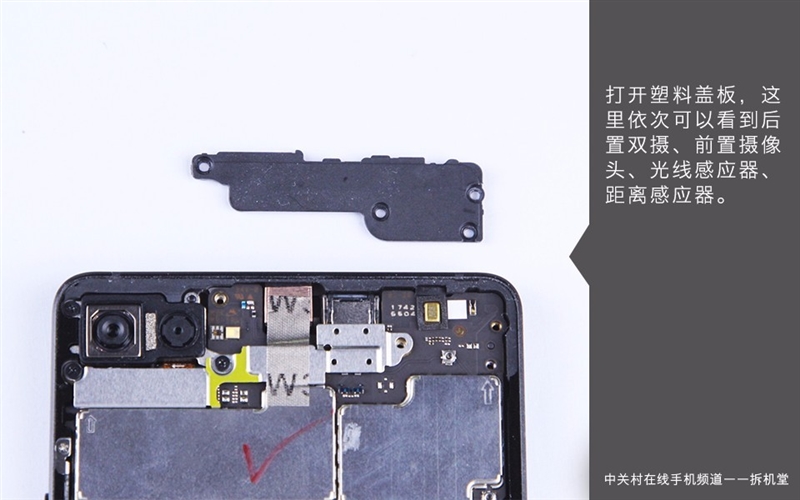

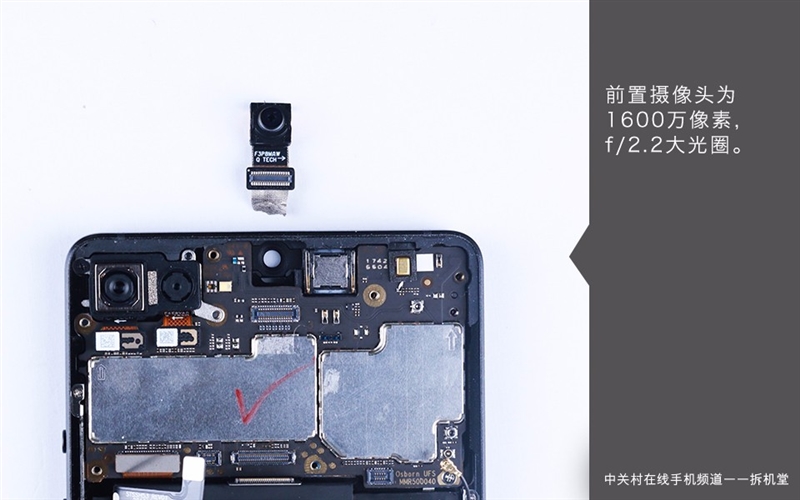

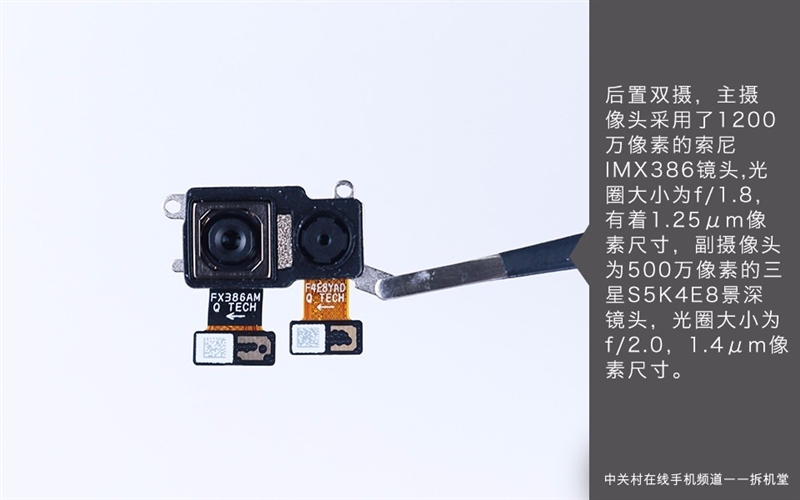

Just to refresh your memory, the Smartisan Nut Pro 2 features a 5.99-inch in-cell display with an 18:9 aspect ratio and a 2160 x 1080 resolution. The device is powered by Qualcomm’s latest premium mid-range Snapdragon 660 SoC and there are up to five memory variants. You get a 4GB RAM + 32GB ROM variant, 4GB RAM + 64GB ROM, 6GB RAM + 64GB ROM, 6GB RAM + 128GB ROM, and 6GB RAM + 256GB ROM variant. Camera wise, a 16MP F/2.2 camera sits at the front, while at the rear there is a dual camera setup which has a 12MP Sony IMX386 primary sensor with 1.25um wide-angle sensor, f1.8 aperture and PDAF. It teams up with a 5MP Samsung S5K4E8 1.4um secondary sensor with f2.0 aperture. The secondary camera is a depth of field sensor which utilises the ArcSoft dual camera bokeh technology.Smartisan Nut Pro 2

Related: Smartisan Nut Pro 2 Launched: 5.99” 18:9 Display, 5 Different Variants & A Fantastic Design

In addition, there is a 3500mAh battery under the sleek body with fast charging technology. The phone is also a dual SIM phone and has the USB Type-C port and NFC on the high-end variant. There is no 3.5mm audio jack but inside the packaging box, you’ll get a 3.5mm to USB-C adapter.
