POCO Global launched the POCO F3 flagship smartphone a few days ago. The device has an aggressive starting price tag of €299. This device is a rebranded version of the Redmi K40 from China. Today, POCO has shared an official teardown video of the device revealing its internals like LiquidCool technology, vibration motor, and more.

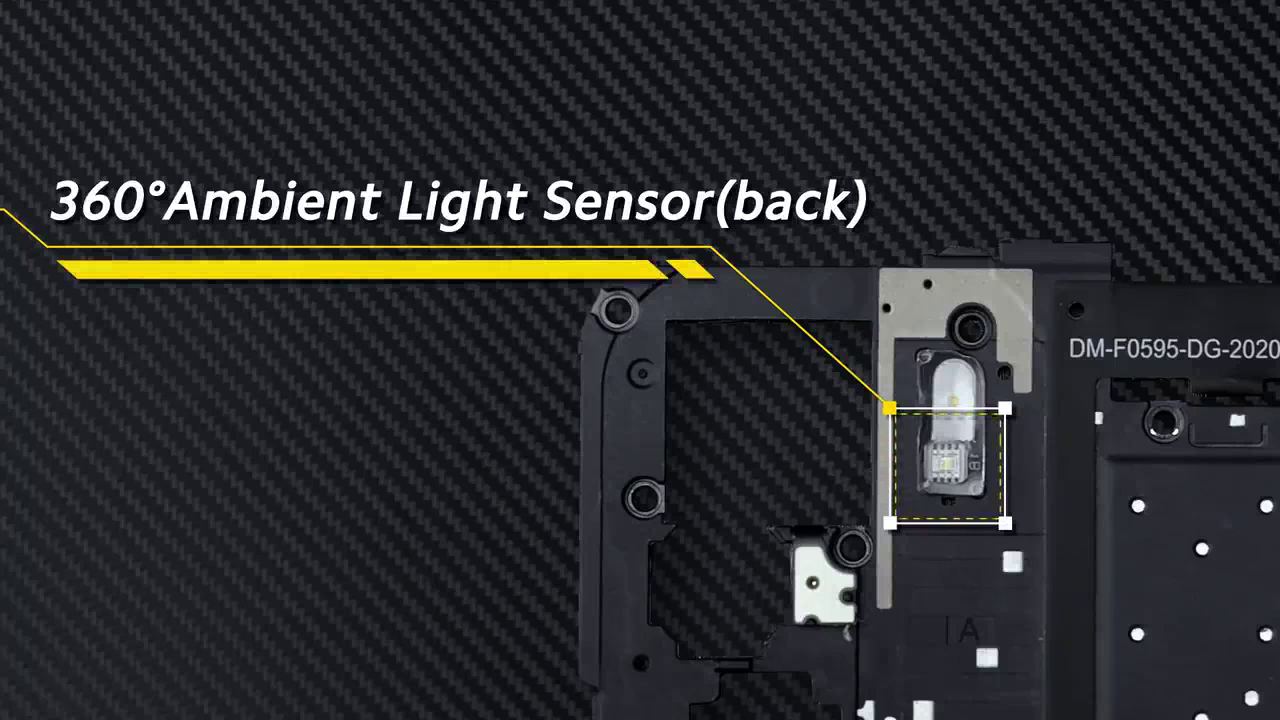

The video begins with the removal of the POCO F3 rear panel revealing the inside of the device. Interestingly, the secondary mic, LED flashlight and 360-degree ambient light(rear) sensors are attached to a covering of the top inside portion.

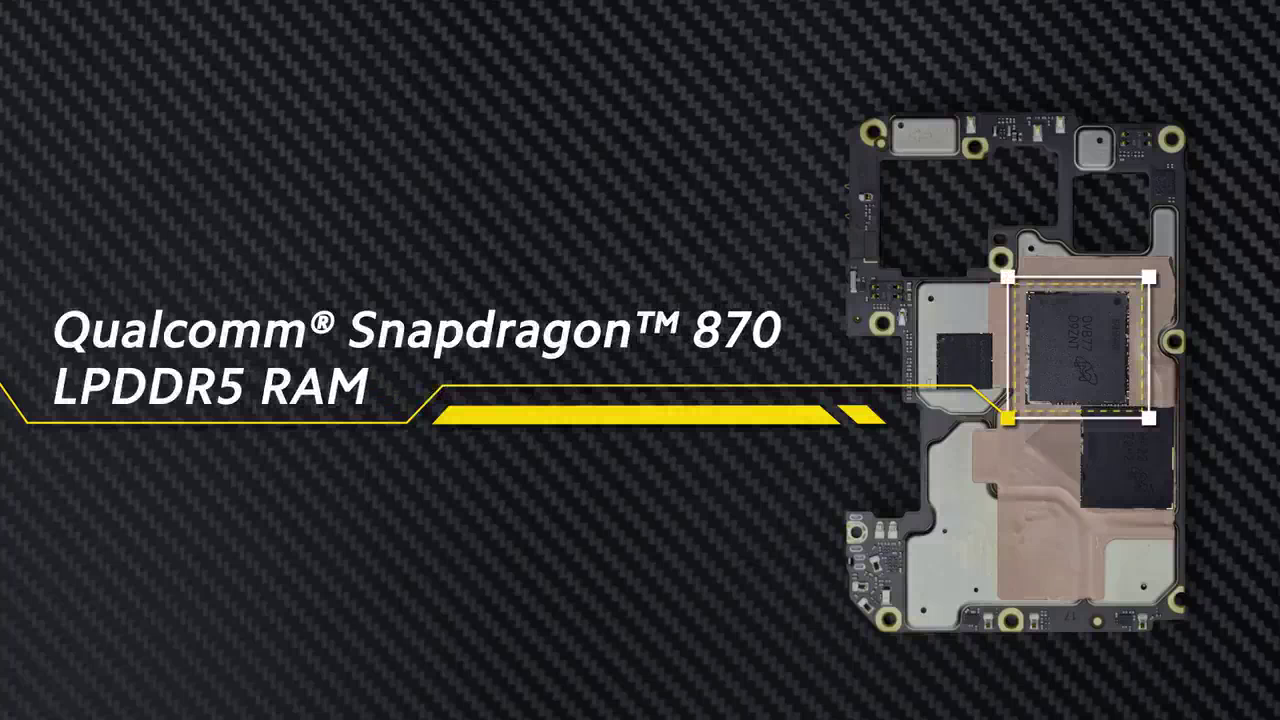

Removing the cover reveals the chipset inside. Speaking of which, the chipset contains Snapdragon 870, LPDDR5 RAM, and UFS 3.1, and Wi-Fi 6 modems on it. A graphite cover is hiding the copper covering of the processor which has the triple-cameras to the left. On the top, we also see the IR blaster.
The triple-cameras are placed separately beside and not as a single unit. To recall, the POCO F3 has a 48MP Sony IMX582 f/1.79 main camera, an 8MP f/2.2 ultrawide angle camera with a 119° FOV, and a 5MP f/2.4 telemacro camera.

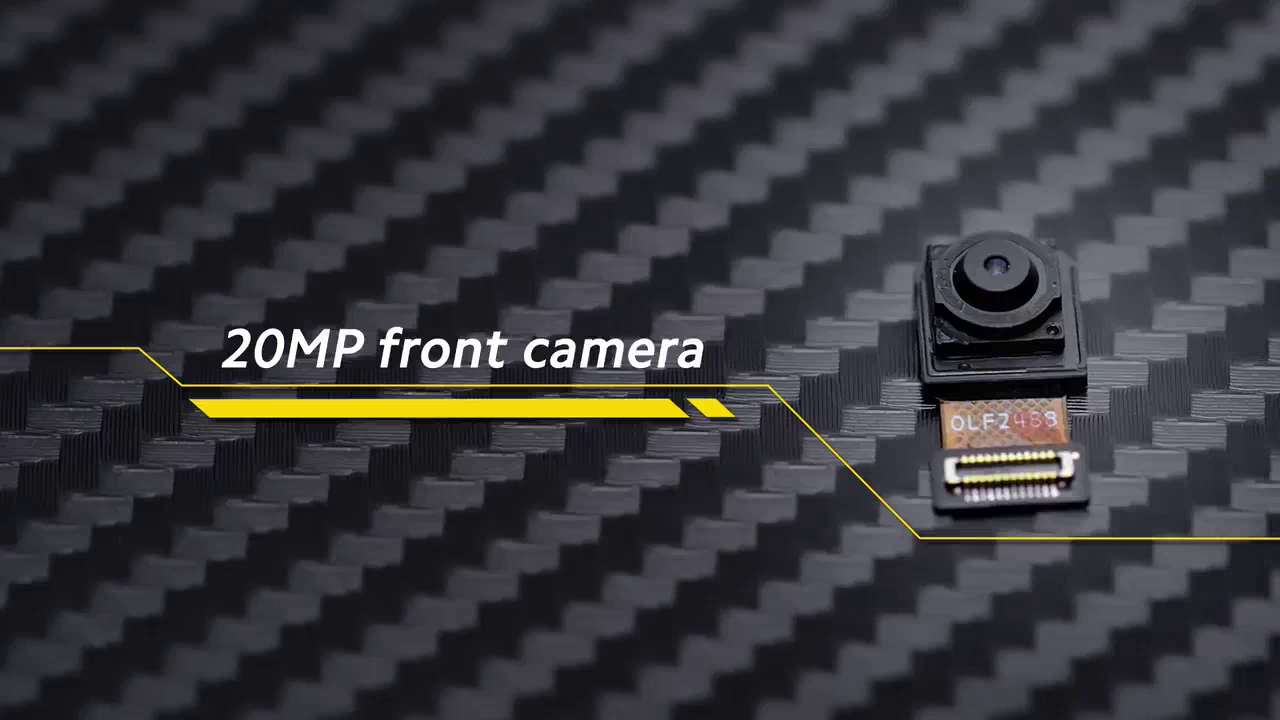

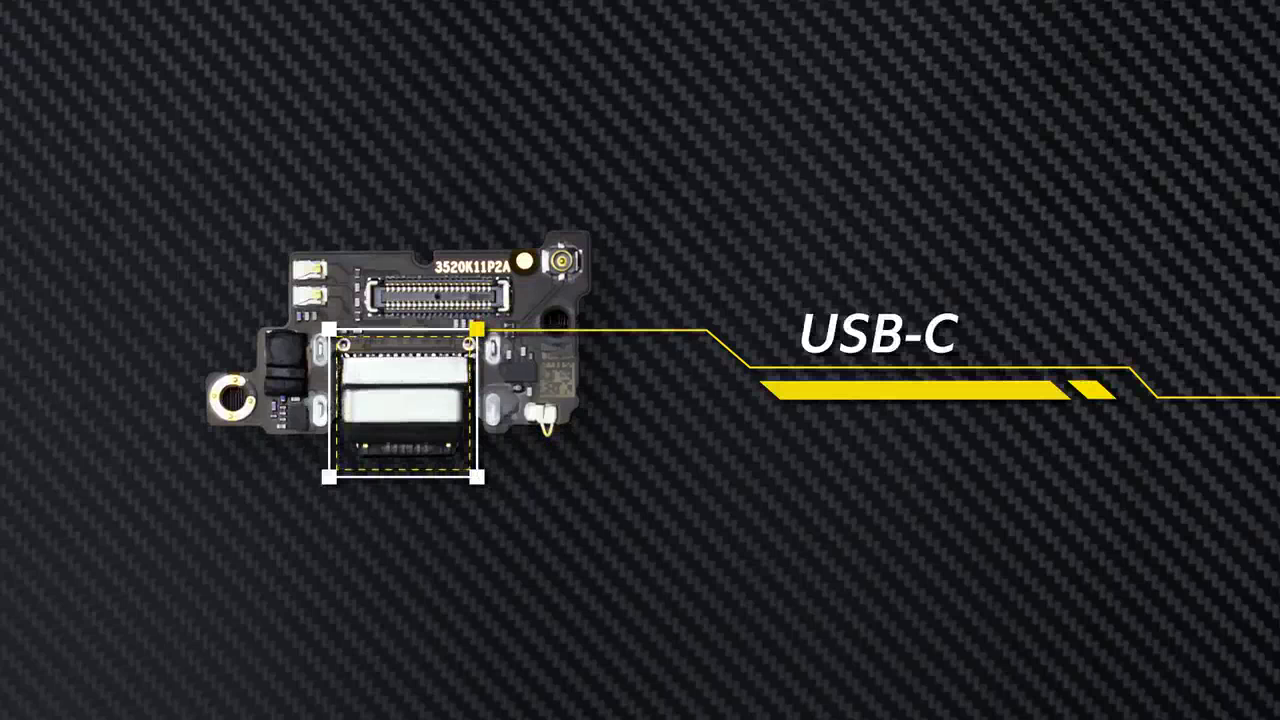

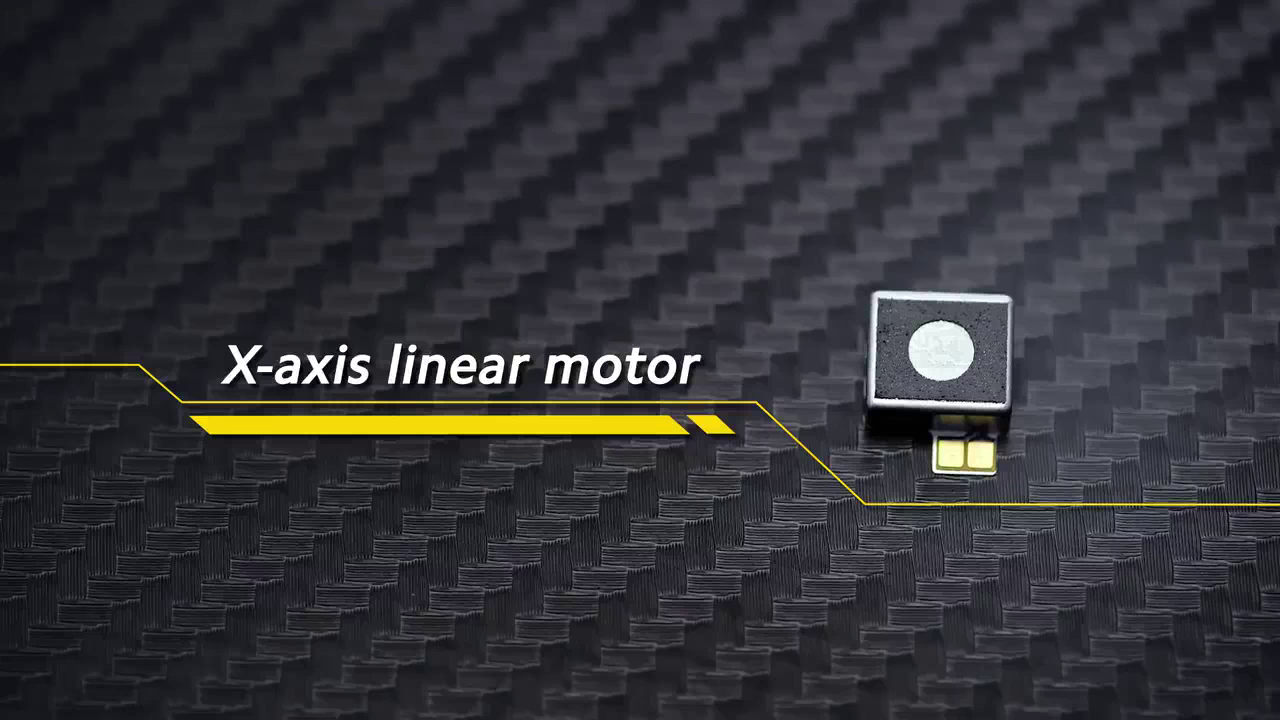

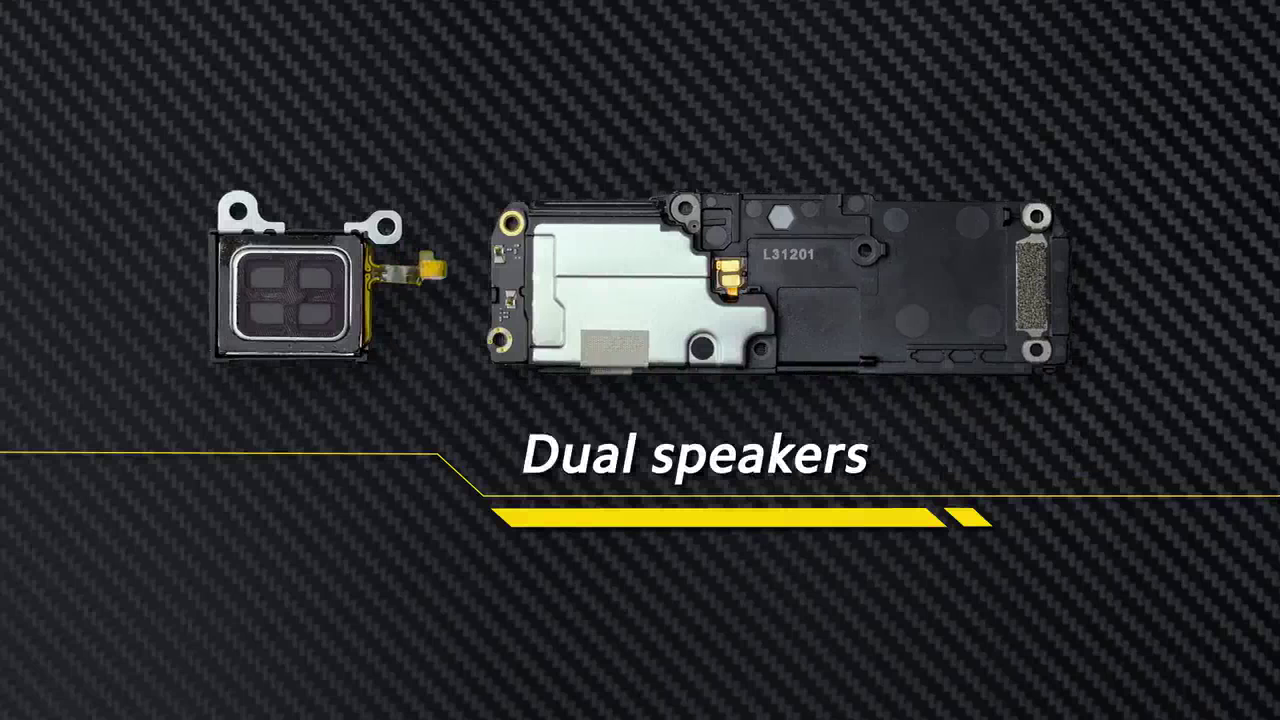

Similar to the rear sensors, the front selfie shooter also seems to be fixed firmly to the frame of the phone. Moving to the top and bottom before the battery, we see another ambient light sensor, Dual-speakers, USB-C port, and the X-axis linear vibration motor.

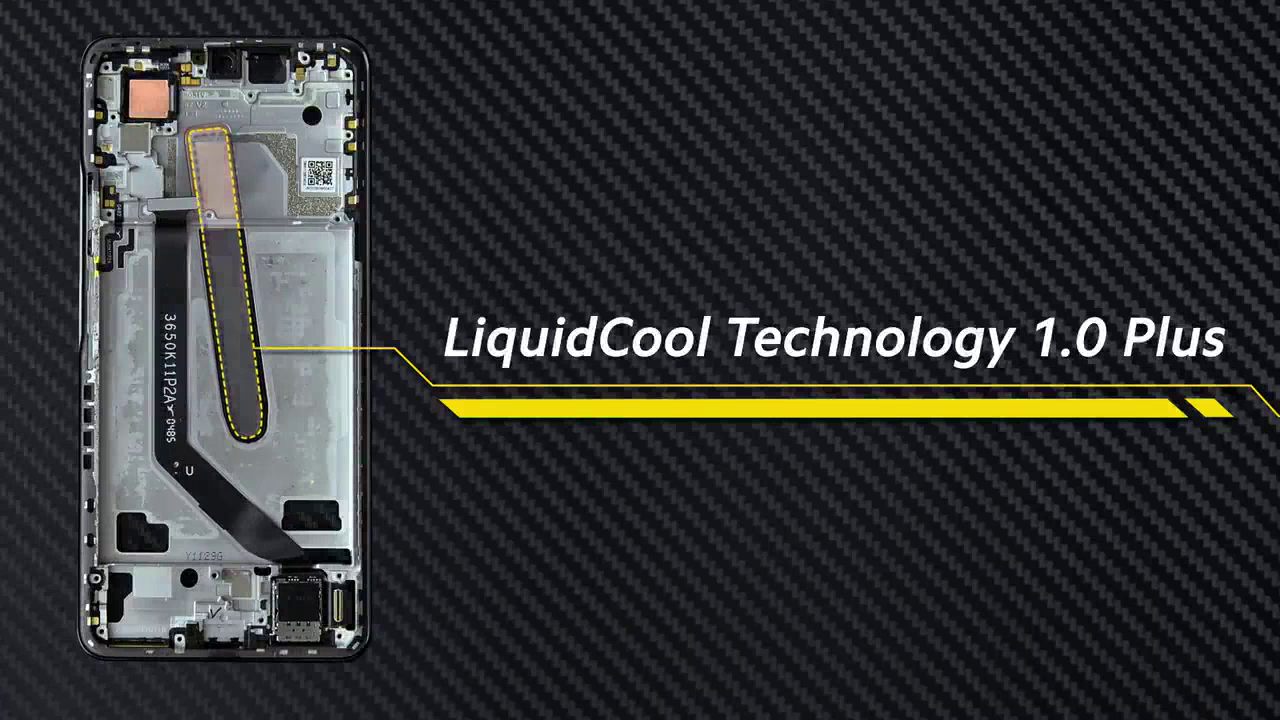

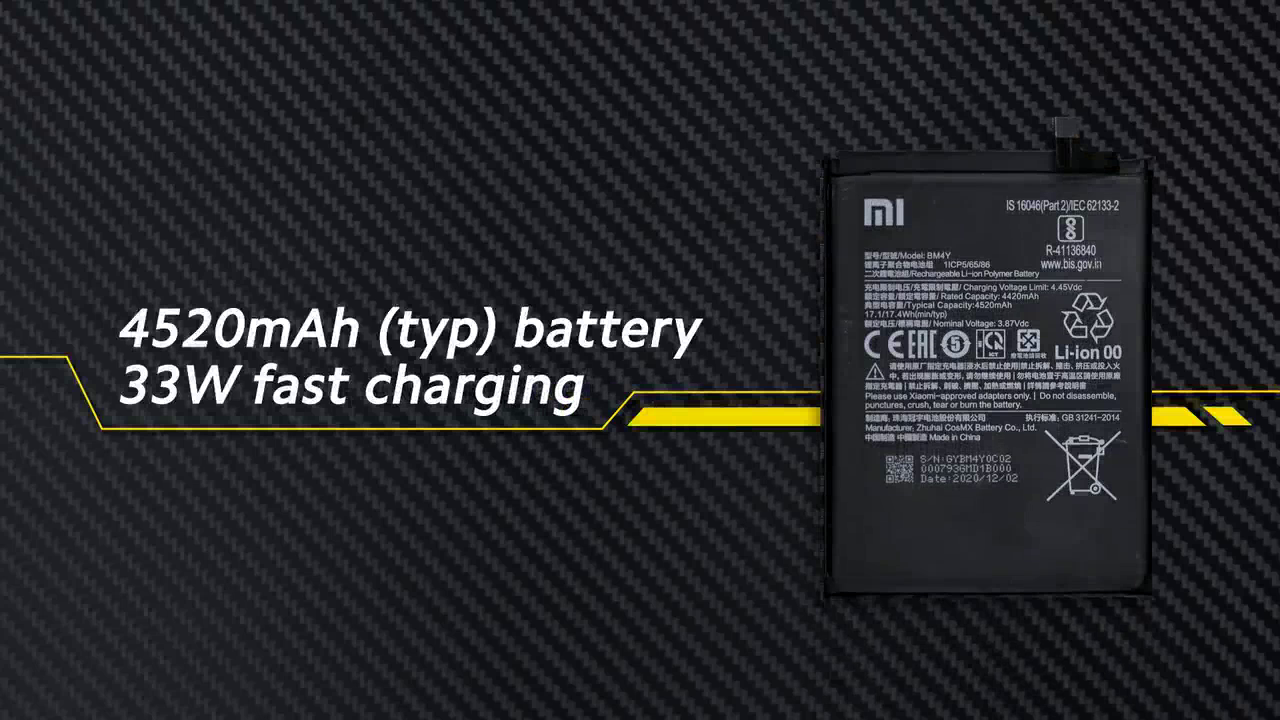

The battery is also fixed to the frame firmly by glue. Removing it reveals that the typical capacity is 4,520mAh battery and is made by Zhuhai CosMX Battery Co., Ltd. After this, the LiquidCool 1.0 Plus technology is exposed. A copper pipe runs between the battery, components, and the display to keep the device cool.

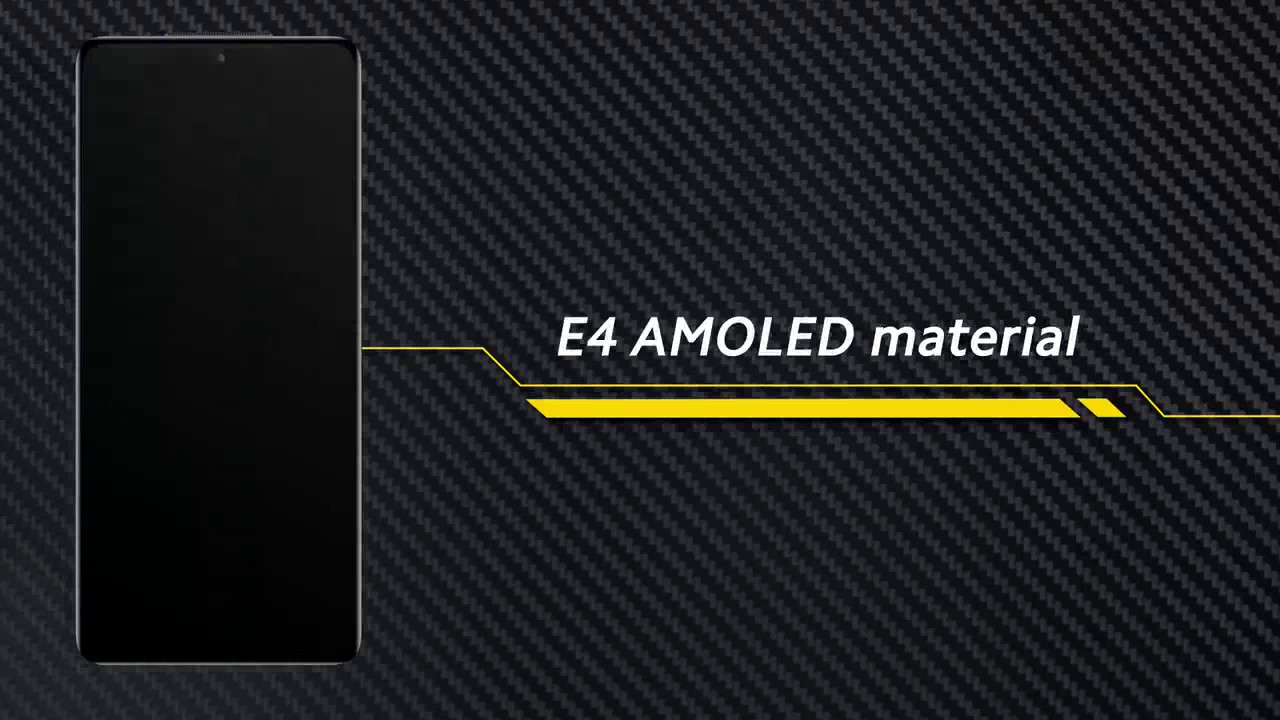

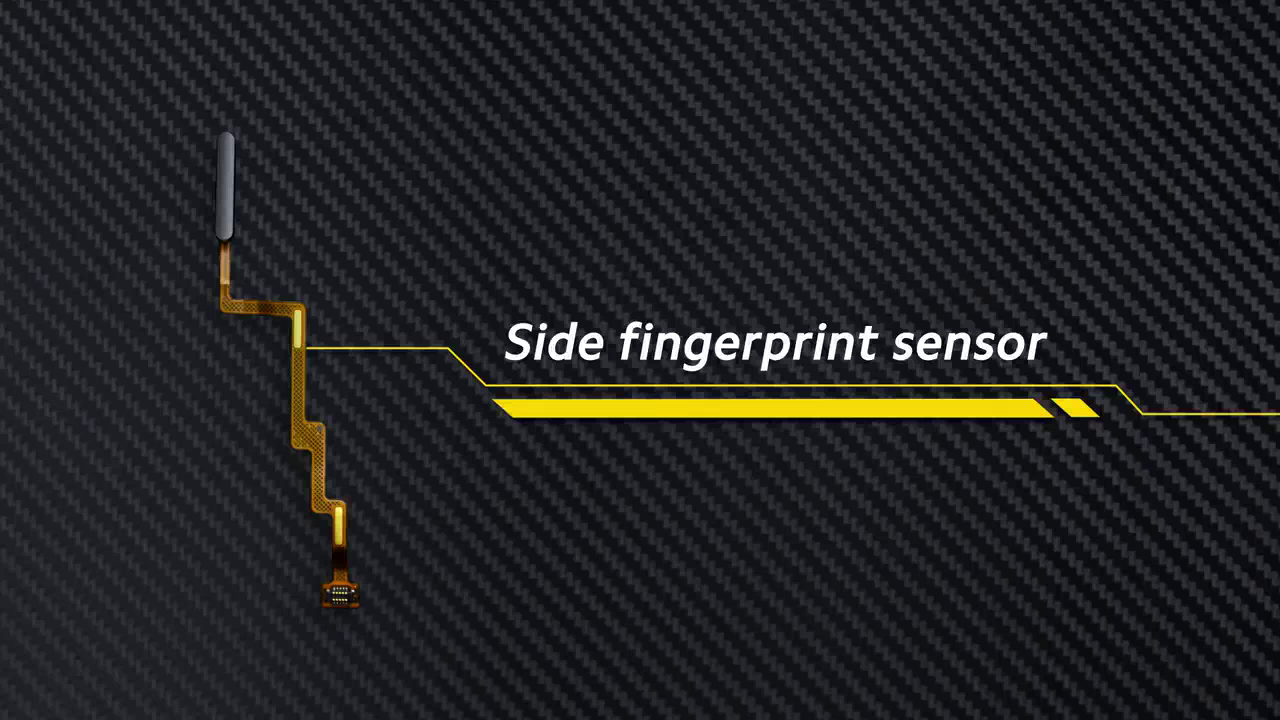

Finally, the Samsung E4 AMOLED display, side-mounted fingerprint is removed from the device and in case you don’t know, the POCO F3 doesn’t have an in-display fingerprint sensor despite sporting an AMOLED display.
