Huawei P20 Pro: First Teardown Reveals Three OIS Cameras And Modular Charging Port

by Michele Ingelido 0

The first teardown of Huawei P20 Pro made by iFixit has just revealed several important things about the components and the grade of repairability of the most powerful flagship released by the Chinese giant. To remove the back cover, the guys from iFixit had to use a special tool with two suction cups, but, even though the Pro is waterproof, they didn’t have to heat the device. In order to separate the backplate from the rest of the device, they had to disconnect the autofocus laser cable from the motherboard.

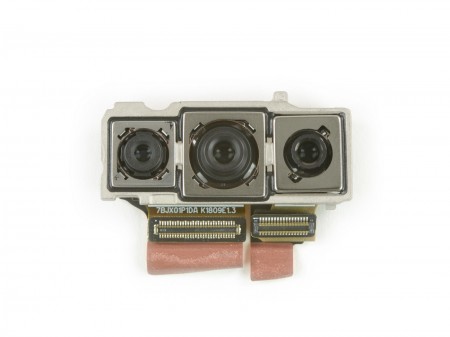

After removing the NFC antenna under a shield held by a few screws, it is possible to access to the motherboard, which has a small footprint leaving space for the big 4000 mAh battery. The motherboard is connected to the three camera modules (through two connectors) and the LED flash. According to iFixit, despite Huawei‘s claims suggesting that only one lens is optically-stabilized, every camera module has OIS as each of them can move around just like every optically-stabilized sensor. In case you do not remember, Huawei P20 Pro has a triple camera composed of a 40 MP RGB sensor, a 20 MP monochrome sensor and an 8 MP telephoto sensor.

RELATED: Huawei P20 Pro — The Best Huawei Flagship YET!



According to Huawei, only the latter has OIS. Guys from iFixit also discovered that Huawei P20 Pro has a modular charging port, so it will be easy to replace it when it does not work properly anymore. On the other hand, the display is kinda hard to replace as it requires taking off the rear glass and disconnecting its cable which is connected to the motherboard. Further, the battery is difficult to remove as well. Several components of this device are modular and can be replaced, but according to iFixit that P20 Pro has just a 4/10 grade of repairability, which isn’t much for a costly device like this. You can check out the entire teardown from iFixit here!

(Via)
