Before punch-hole displays became mainstream in the smartphone industry, we had phones with pop-up cameras, in addition to devices with various types of notches. However, Samsung did not release a single pop-up camera handset but did launch a rotating camera mobile called Galaxy A80. But now, the company has patented a unique pop-up camera module for smartphones.
According to LetsGoDigital, Samsung Electronics filed a patent titled ‘Electronic device including camera module’ with the WIPO (World Intellectual Property Office) in mid-2020. This patent got approved and published on January 14.
This design patent demonstrates a rotatable pop-up camera module. According to the documentation, the module may house at least three cameras. In the normal state, all these sensors will face backward.
EDITOR’S PICK: Samsung confirms it’s got rollable and slidable displays in the works
But in the selfie mode and video calls, this cylindrical module will rotate to face the front and will slightly pop-up out of the phone’s body to expose a single sensor at the top. The documentation also mentions an option to disclose the second sensor as well by rising the module even further.

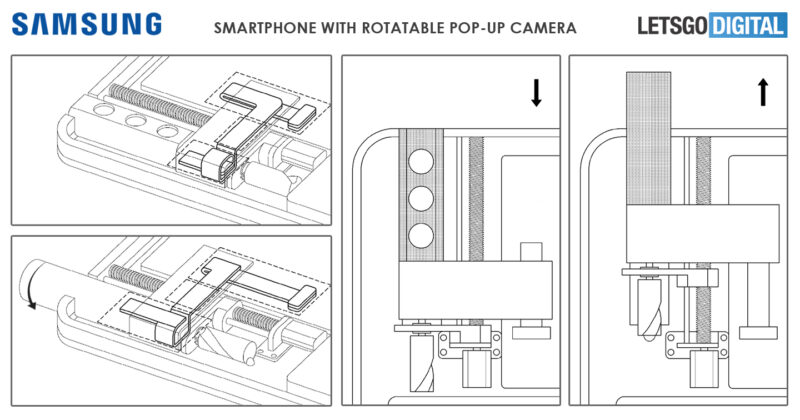

This system uses a motor, two gears, and a long propeller shaft. It also includes a movable frame that shifts to the void place when the camera module rises. This frame house a flexible printed circuit board.
Having said that, we don’t expect Samsung to release a commercial smartphone with this solution. Because it sounds more fragile than the regular pop-up camera system. That said, the above renders are created by Jermaine Smit (Concept Creator) for LetsGoDigital.
