A teardown of the Huawei Honor 6

by Frank Tu 2

The Honor 6 uses the Kiring 920 which is made up of four A15 cores and four A7 cores. Its GPU is the Mali-T628. This phone also sports a 5-inch 1080p touch screen, with 3GB RAM and 16/32GB internal memory space. It also has a 5mp/13mp dual-camera. Its operating system is the Android 4.4.2 and is powered. Lastly, it’s powered by a 3100 mAh battery.

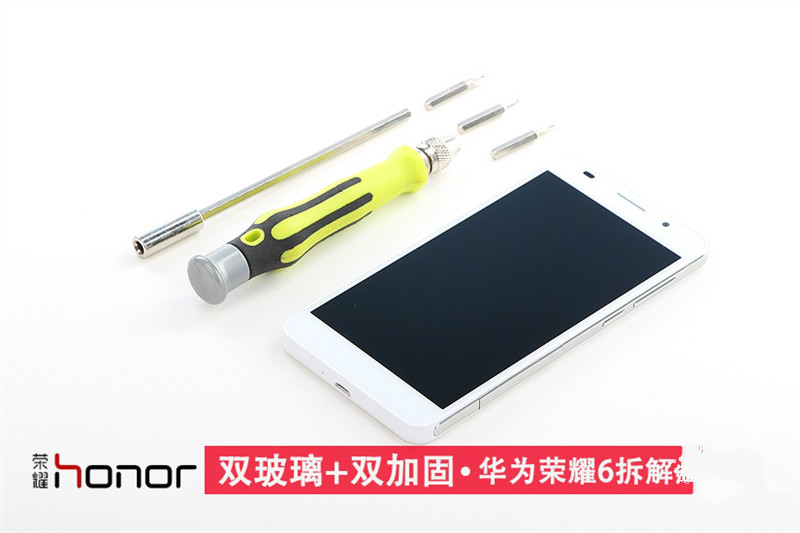

s_1d6b20a8d3e446469e96f6873322b923



Double-glass + double-reinforcement —- The Huawei Honor 6 disasembled

s_38708fcf3fd846d793a6af1f288afb83_meitu_2



So How’s the first cell phone to use the Kirin 920? Let’s check it out!

s_48c2923598184144844bb414bbb8127e_meitu_3

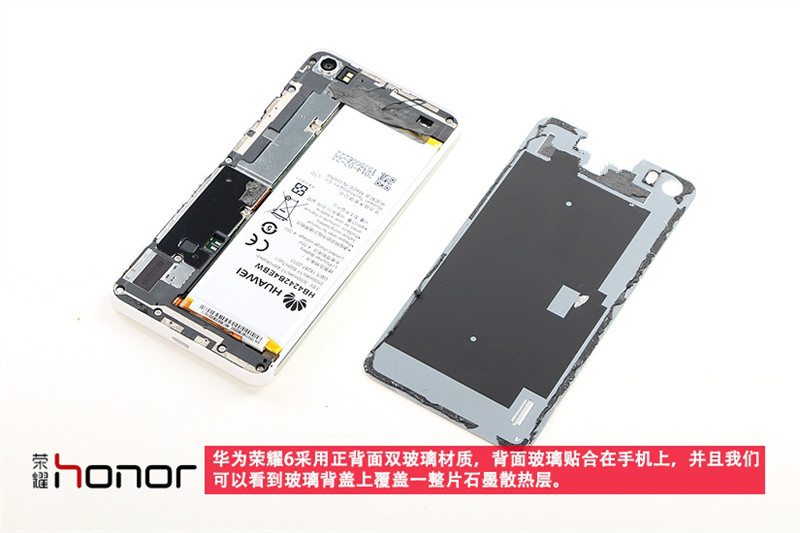

Both sides are made of glass which is covered with a thermal pad.

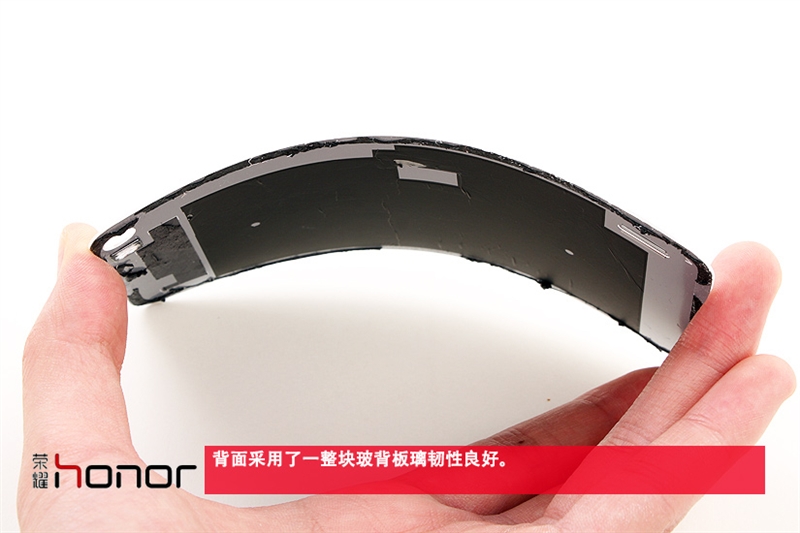

s_500d39f093314470be751587902de83a



The glass in the back is quite strong.

s_3b70086409d5461f894221c47ca58b8e_meitu_5

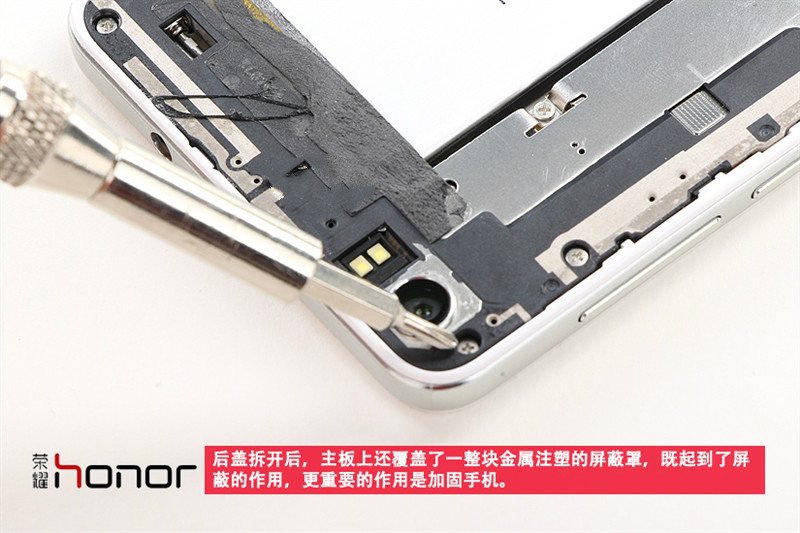

The motherboard is covered with a metallic shielding case, which, other than protecting the motherboard, makes the phone sturdier.

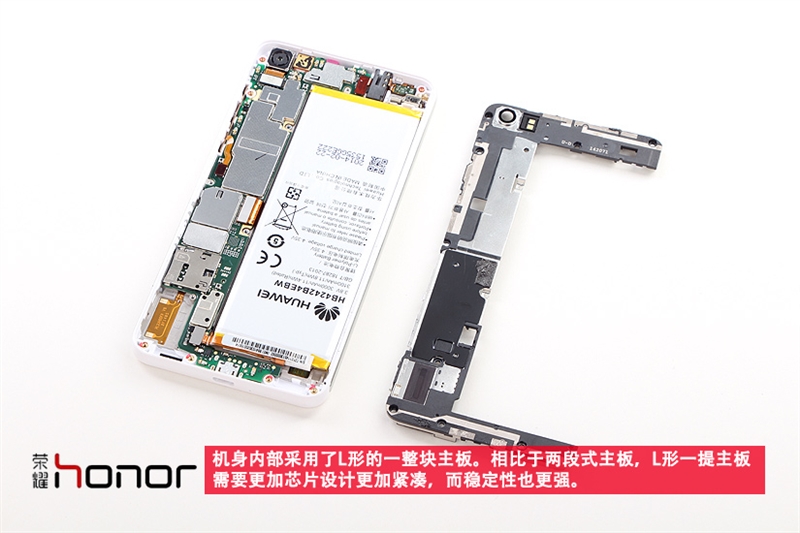

s_8c91743795e74b789f53f50ad1933373



Inside the phone, it sues an L-type motherboard. More chips needed and the phone needs to be more compact to increase stability.

s_882c565daade4a02a388426e352436e0_meitu_7

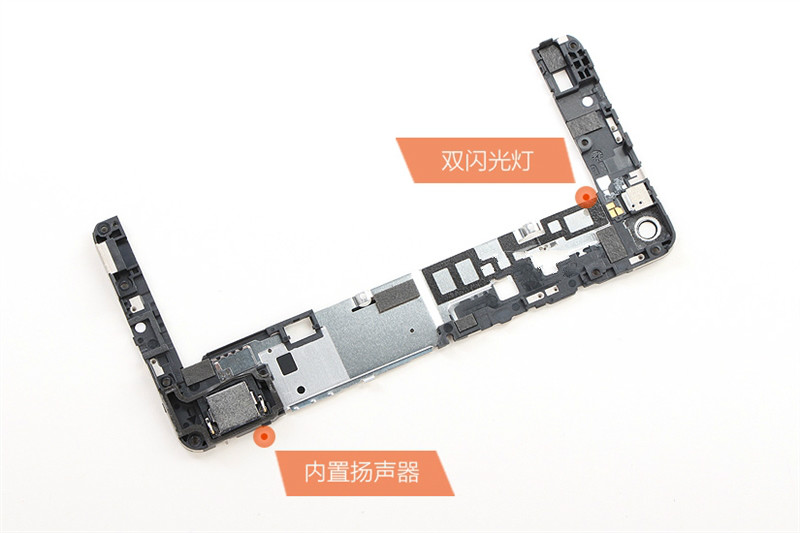

Top: dual flashlight

Bottom: Speaker

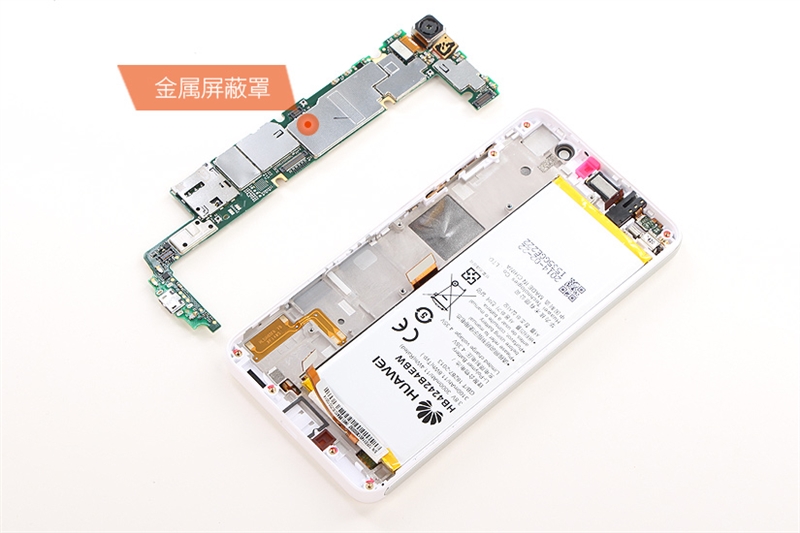

s_ca7a98b8d3334ddf9bce18867cc6326c

Metal shielding case

s_5e8084c7342047aabd3f23433ccacfe0_meitu_8

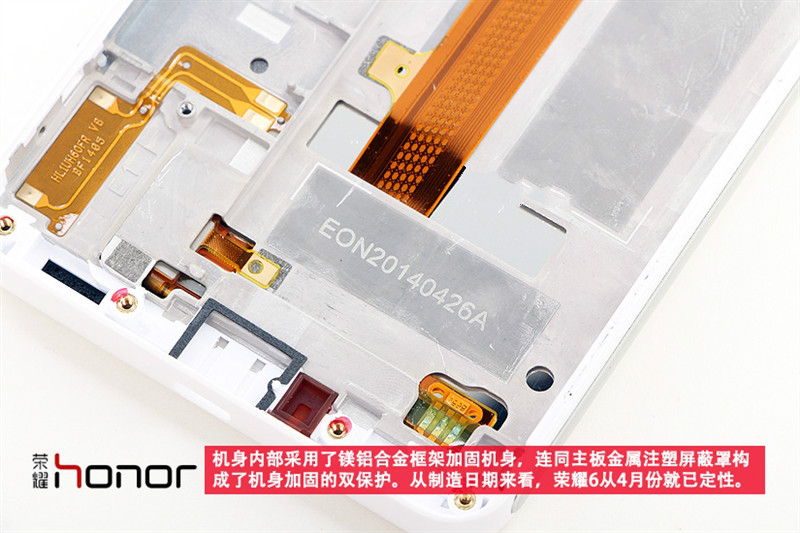

In addition to the shielding case, the phone is reinforced by a duralium case as well. According to the date it was produced, this was determined in June.

s_c6028415e93049d5b3e8883c9b868be3



The Honor 6 uses a 3100mAh battery, making it one of the few cell phones with a 5-inch 1080p screen to use a battery with more than 3000mAh.

s_fb91065c5fa44a5d9ef1633a047deaec_meitu_9

Left: Vibrator

Middle: speaker

Right: earphone port

s_5cc0fdf3771d4aaa968e5da72f3f4924_meitu_10

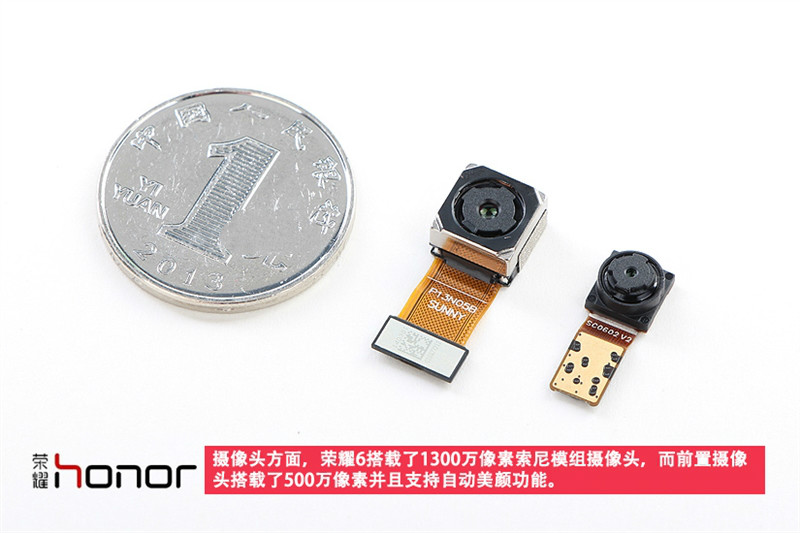

It sports a 5mp/13mp Sony dual-camera and supports automatic beautification function.

s_ee46835076e14e73b3a24bd67db12b5c_meitu_11



Middle: Noise-cancelling microphone

Right: Infrared transmitter

s_946bfa5d14a44383959e173a50b9ef77_meitu_12

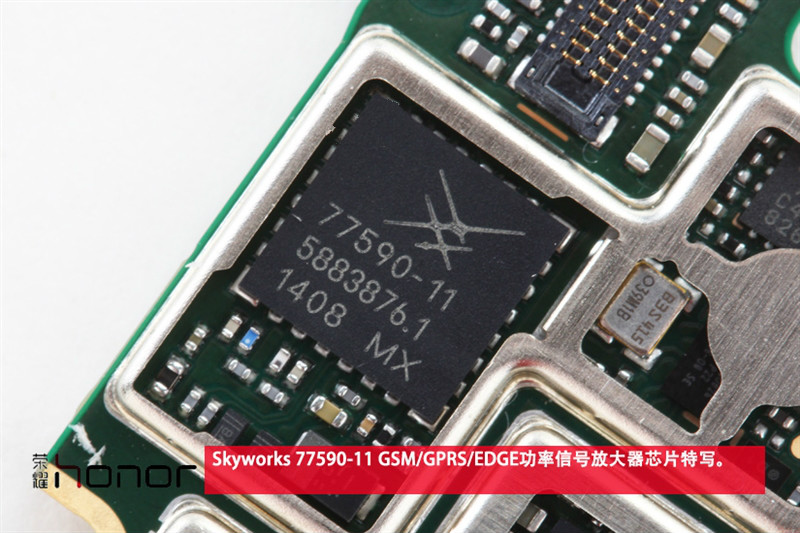

A close-up of the Skyworks 77590-11 GSM/GPRS/EDGE chipset.

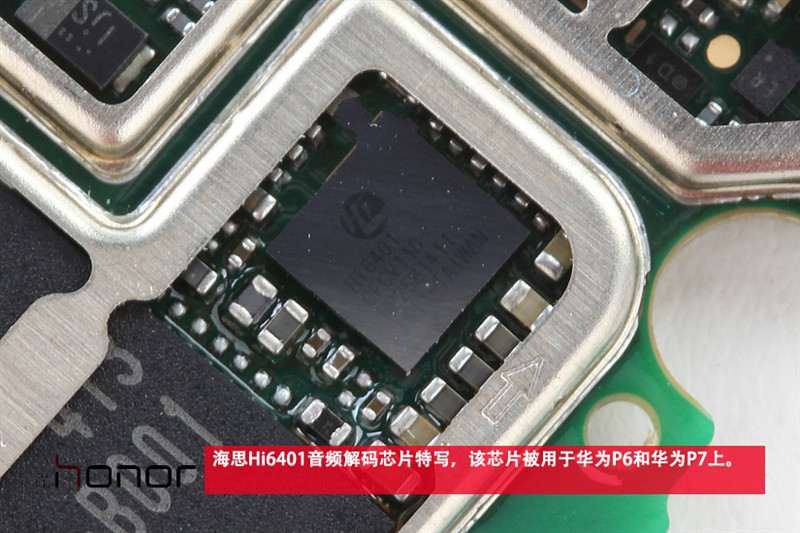

s_37a9b919dd87492bb2ab3b7263557b57_meitu_13



Close-up of the HiSi Hi6401 audio chip. Both the Huawei P6 and P7 use it.

s_273aaed7d2ef4b50b52062056e9f7812_meitu_14



Kirin 920 + Samsung’s 3GB RAM chip

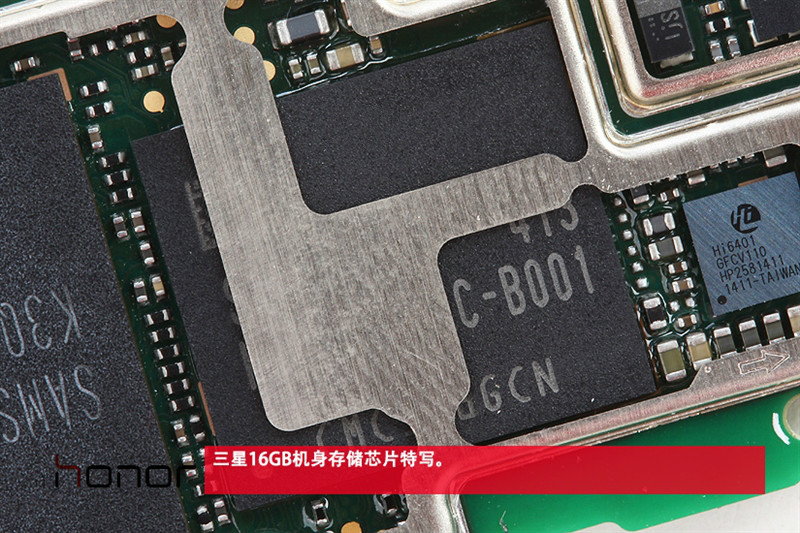

s_261ce386f8aa4675b2884dd0184a0f7c_meitu_15

Samsung’s 16GB internal memory storage chip

s_64dcf5fc514b4562840280c4cc776bd6_meitu_16

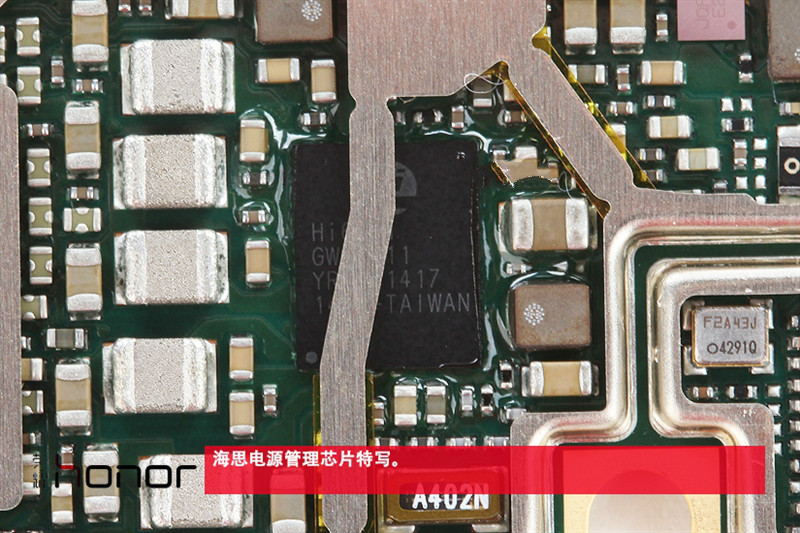

The Hi6561 power management chip.

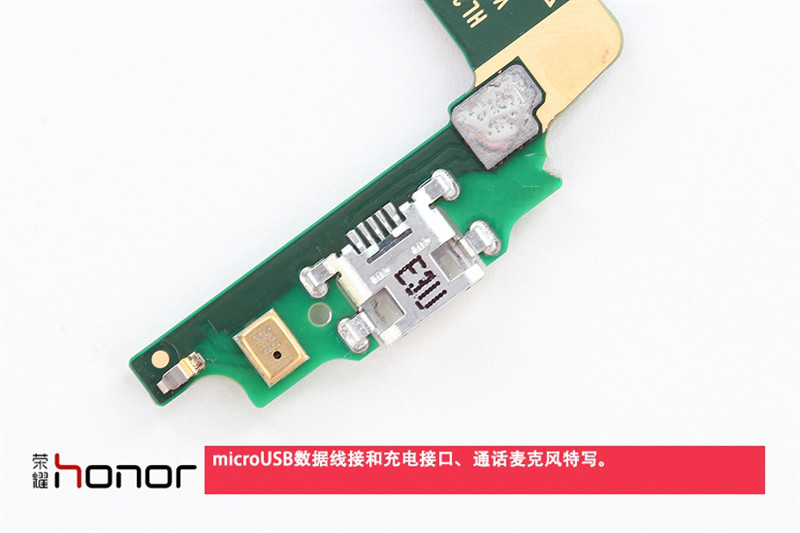

s_70723448f2214c25963dac8331939379

MicroUSB port, recharging port, and speaker phone

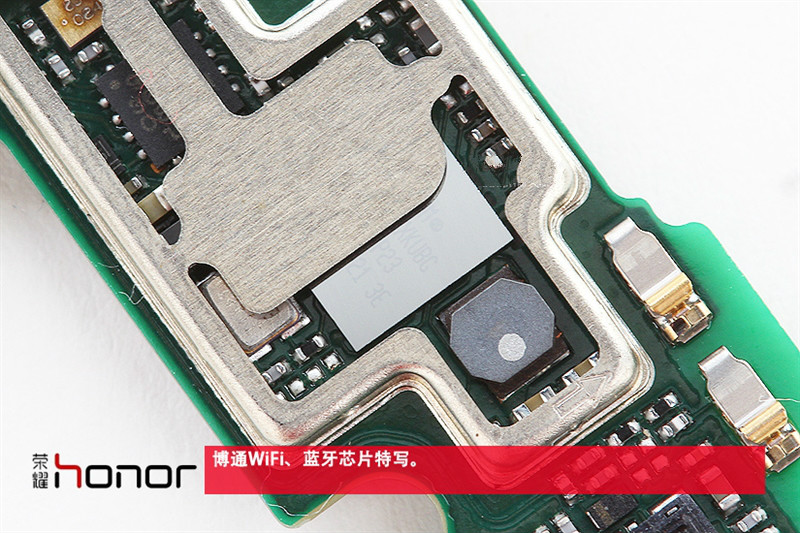

s_5b193801df664f21ade71af635ec01f4

WiFi and Blu Ray chips

s_8f8bb3e2bbc84728b62a86df551f7837_meitu_19

s_43ac8f2de8a64179a9917a93ff3d5749s_26824fb7dfa642faa64894f49f6b1116_meitu_21

s_c3a23a6b42df4f43a55da5c6bf8407e6

Unlike other cell phones:

  1. The Honor 6 guarantees 4G signal overflow, and uses a 3000mAh battery.
  2. The Honor 6 uses the new Kirin 920 processor.
